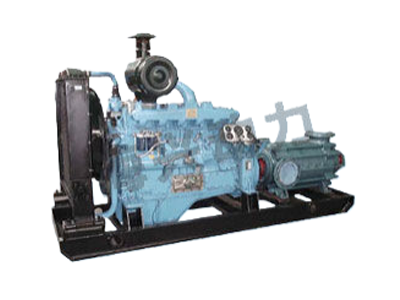

Diesel emergency water pump unit

Features of CSB type fully automatic emergency diesel engine water pump unit

1. Automatic start: After receiving the pipe network pressure/power outage/or other start signal, the diesel water pump unit can automatically start and put into full load operation within 15 seconds;

2. Automatic charging: The battery can be automatically charged using mains power or diesel charging motor to ensure the smooth start of the unit;

3. Automatic alarm: Automatic alarm protection for diesel engine low oil pressure, high water temperature and other faults, alarm and shutdown when overspeeding;

4. Automatic preheating: puts the diesel engine in a warm engine standby state to ensure emergency work;

5. Direct connection type: Diesel water pump units below 360kw adopt domestic technology of direct connection between diesel engine and water pump through elastic couplings, which reduces failure points, greatly shortens the starting time of the unit, and increases the reliability and emergency performance of the unit;

6. Users can also request to set other alarm outputs (non-standard supply);

7. With telemetry, remote signaling and remote control functions (non-standard supply);

8.


Standard scope of supply:

1. Fully automatic diesel water pump unit: diesel engine, water pump, cooling fan, radiator tank, steel structure base, (water heater), battery and connecting wires, exhaust muffler, expansion joint, automatic control panel (adopting original imported British DEEP SEA 520 complete automatic controller).

2. According to customer requirements, it is designed into an integrated model with pump unit, bottom fuel tank, automatic control panel and battery pack.

3. Designed according to customer requirements into a composite outdoor type with pump unit, bottom fuel tank, automatic control screen, battery pack, and rainproof box.




Select scope of supply:

300L-1000L daily fuel tank or bottom fuel tank

CSB type fully automatic emergency diesel water pump unit product type chart
