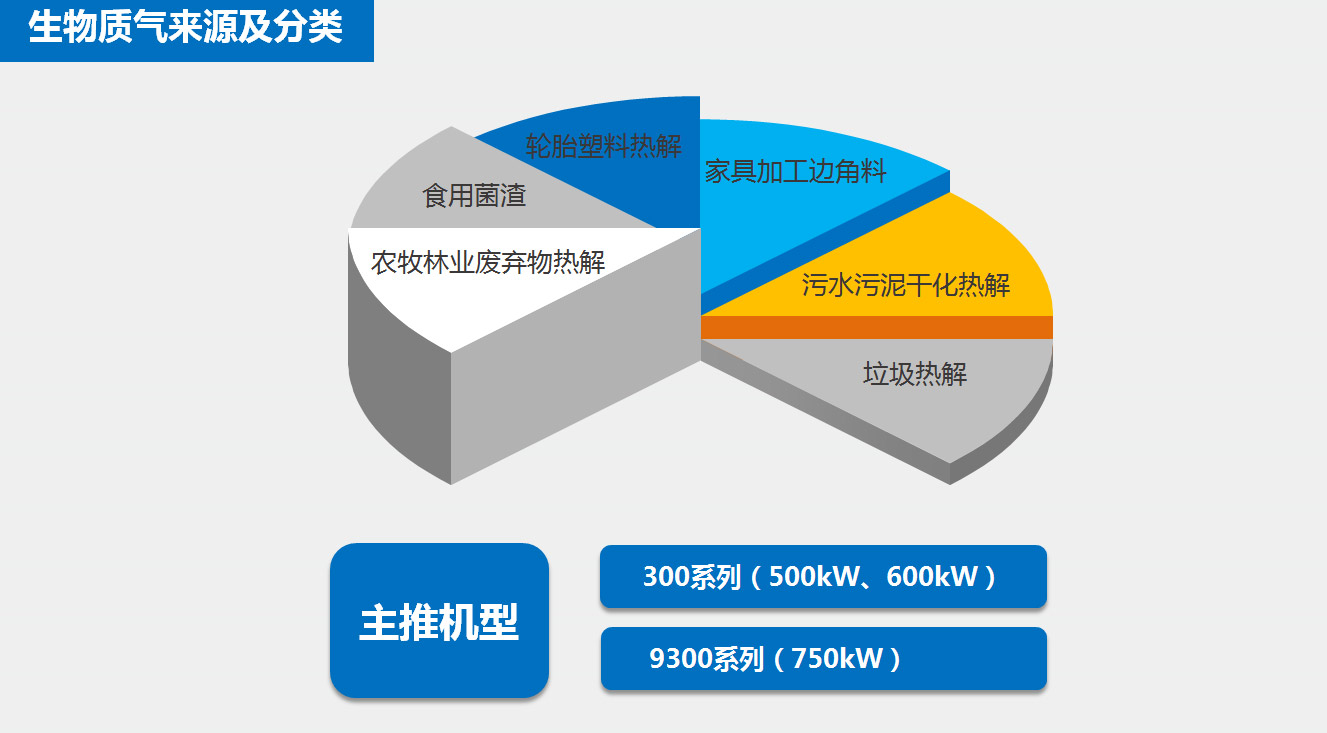

Understory waste and branches in forest areas; agricultural straw and cotton stalks; rice husks from farms; bagasse from sugar mills; sawdust from wood processing plants; municipal domestic waste, etc., are processed through corresponding biomass gasification devices to reduce the amount of waste. The combustible gas produced by oxygen combustion, whose main component is carbon monoxide, can be purified to generate electricity. It uses renewable energy and protects the environment. It is also a project encouraged by national policies. Various applications Forest waste and branches in forest areas; agricultural straw and cotton stalks; rice husks from farms; bagasse from sugar mills; sawdust from wood processing plants; urban domestic waste, etc.

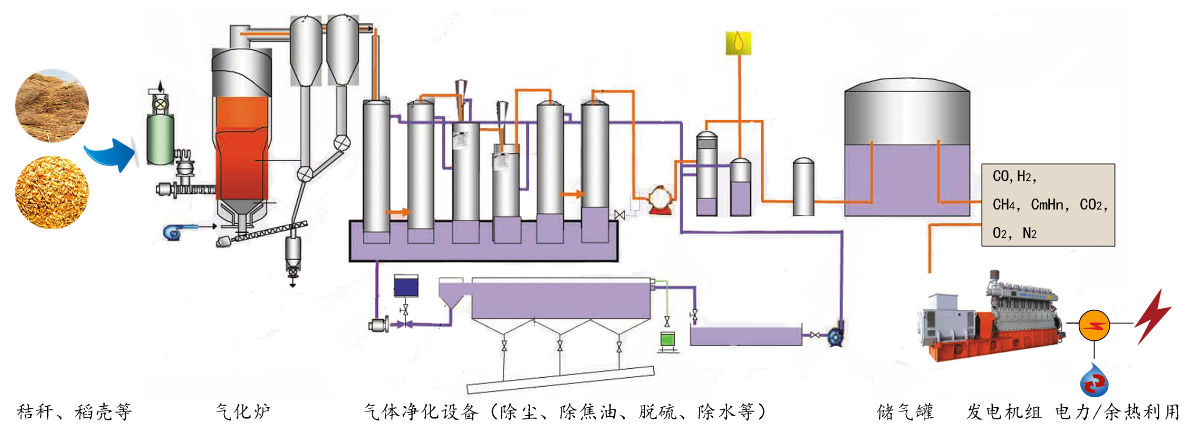

Biomass gas/waste gas power generation process flow chart

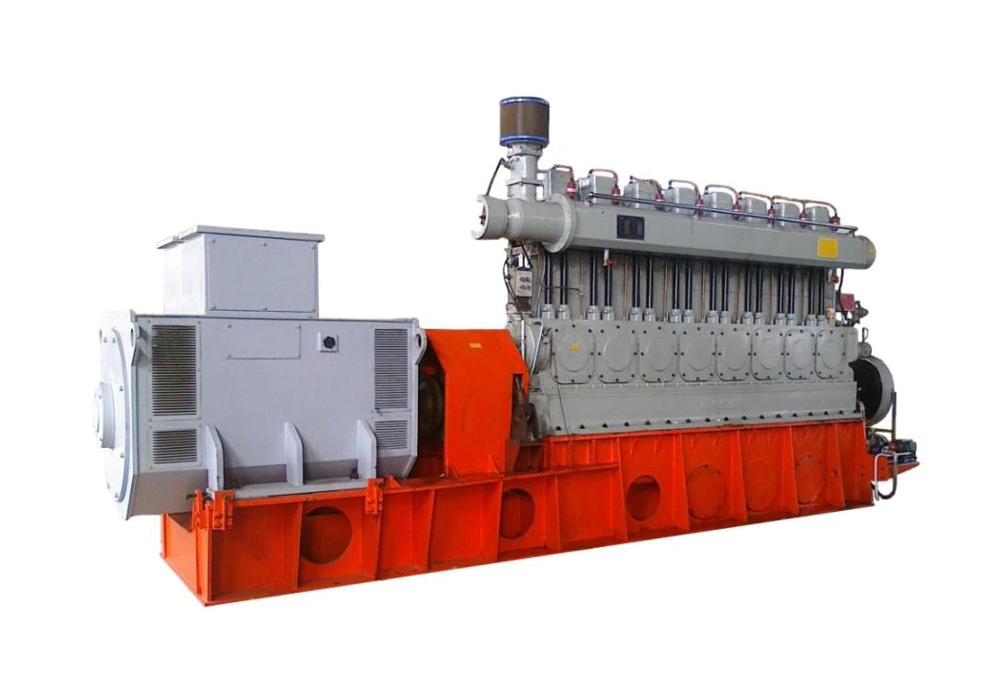

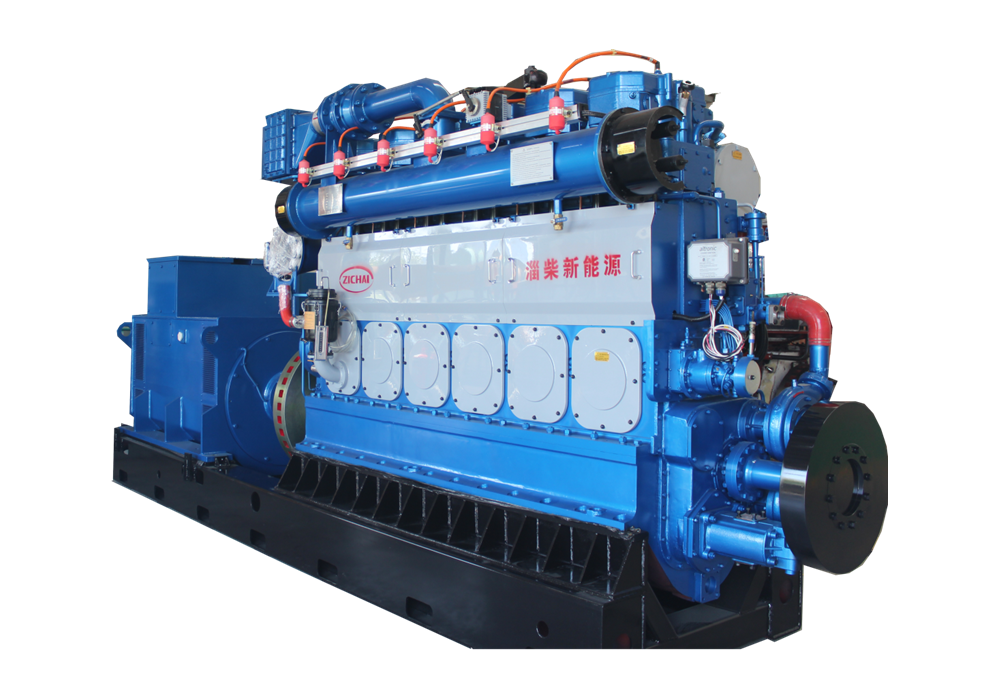

Technical advantages of Zichai biomass gas/garbage gas generator set
▪ Non-supercharged naturally aspirated, double-layer tube air intake system, high tolerance to tar;
▪ The intake valve box is removable for easy maintenance; ▪ External mixing or internal mixing intake system can be selected according to hydrogen content;
▪ Adapt to low calorific value biomass gas and high hydrogen content;
▪ High degree of automation, high safety and low operating cost;
Air source requirements Before entering the machine, the gas should undergo dust removal, tar, benzene, naphthalene, desulfurization, dehydration, and cooling to meet the following requirements:
01
Inlet gas temperature
The inlet gas temperature is ≤40℃;
Gas pressure 2.5~10kPa; Pressure change rate ≤1kPa/min; Gas calorific value ≥ 4.0MJ/Nm3;
04
Tar content
Tar content ≤50mg/Nm3; Hydrogen sulfide content ≤50mg/Nm3; Total sulfur content ≤100mg/Nm3; Ammonia content ≤20mg/Nm3;
Biomass gas/waste gas power generation unit project
The biomass gas generator set adopts non-supercharged naturally aspirated air intake technology. The reliability and continuous operation performance of the unit are unmatched by domestic counterparts. It has market advantages and is used in Japan, South Korea, Thailand, Indonesia, Croatia, Romania, Lithuania, etc. Widely used in the country.

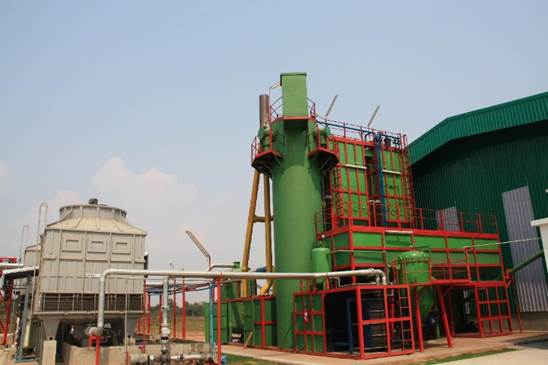

Biomass gas power generation unit project of a company in Thailand
Biomass gas power generation unit project of a company in Thailand
Project scale: 3×400kW, 400V generator sets

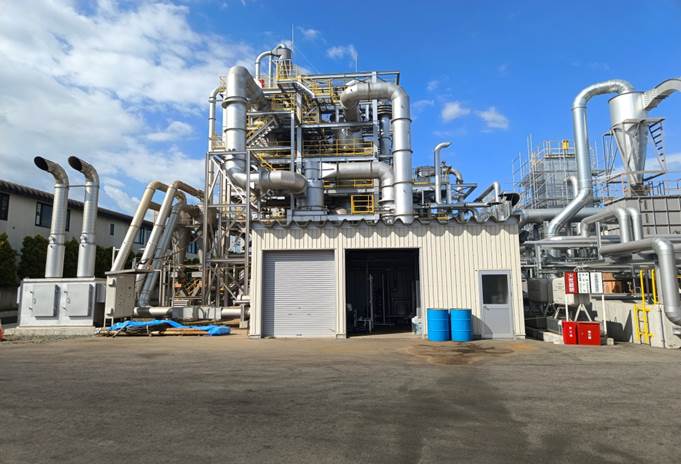

Biomass gas power generation unit project of a Japanese company
Biomass gas power generation unit project of a Japanese company
Project scale: 4×500kW, 400V generator sets

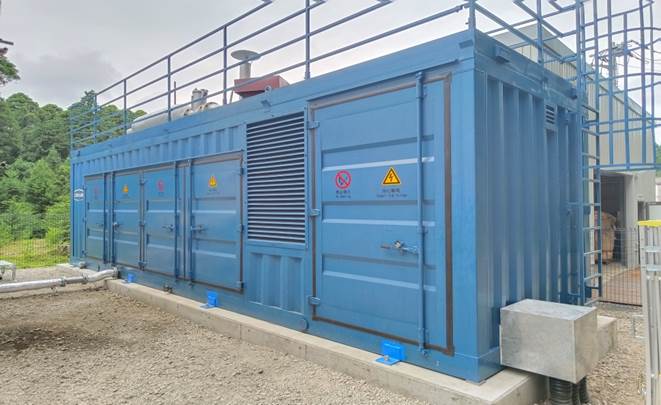

Biomass gas power generation unit project in Japan
Biomass gas power generation unit project in Japan
Project scale: 1×250kW, 400V generator set

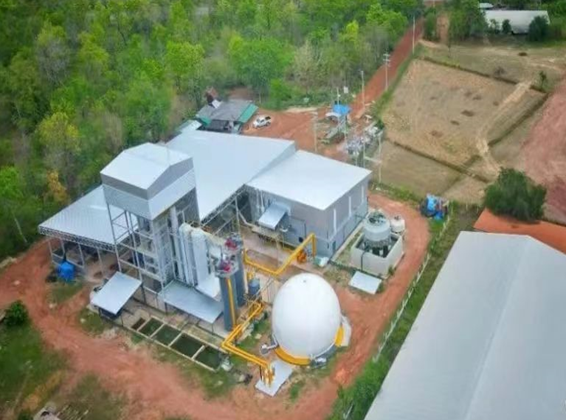

A certain institute in Guangzhou-Thailand biomass gas power generation unit project
A certain institute in Guangzhou-Thailand biomass gas power generation unit project
Project scale: 2×500kW, 10500V Generator set

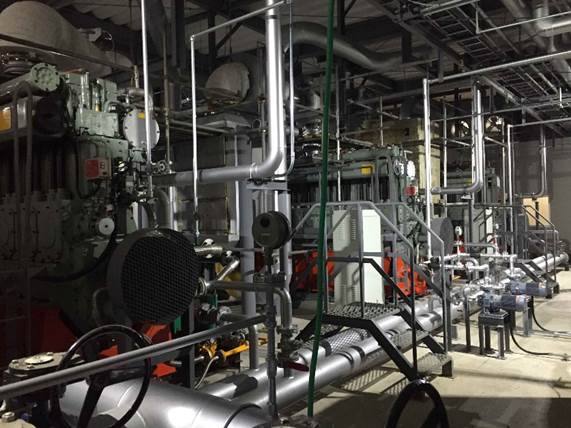

Biomass gas power generation unit project of a certain Japanese company
Biomass gas power generation unit project of a certain Japanese company
Project scale: 3×400kW, 400V generator sets

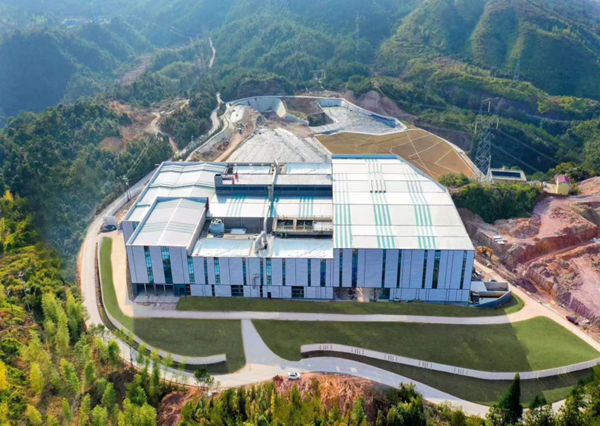

Wenzhou XX company's garbage gasification power generation unit project
Wenzhou XX company's garbage gasification power generation unit project
Project scale: 8×500kW, 400V generator set
