drilling rig

Availability:
Quantity:

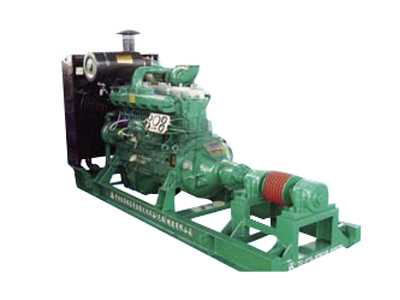

drilling rig

1. Product Overview

  The drilling unit uses Shangchai G128, 135 series, Chongqing Cummins series, German Mercedes-Benz, and Swedish Volvo generators. Brand enterprise, quality guaranteed.


2. Product features

  The drilling unit has advanced structure, good performance and reliable operation, which solves the problem that the transformers of most local coal mining enterprises in China use 380V to supply power underground, and then use a step-up transformer to adjust it to 660V before entering the working surface, which often results in long circuits and losses. Large, technical problems such as difficulty in starting the motor, or even burning out of the motor.


3. Main components

  1. The power engine is the power source of the entire machine, using an internal combustion engine, electric motor or hydraulic motor;

  2. Gyrator or power head, the gyrator is driven by a gearbox, and the power head is driven by hydraulic pressure;

  3. The hole bottom pressurization and feeding device generally adopts hydraulic control, and uses the digital indication of the instrument to pressurize or depressurize the drilling tool;

  4. The winch is a device for lifting the drilling tool. Some drilling rigs use a long oil cylinder to drive the power head to complete the drilling tool lifting operation.


4. Company Profile

  Jiangsu Haixing Power Engineering Co., Ltd., located in Guxi Industrial Park, Taixing City, Jiangsu Province, is a professional manufacturer focusing on the design, installation, construction and technical services of environmental management projects, as well as the production, sales and maintenance of generator sets. The company mainly produces Dongfeng Fengshen generator sets, Dongfeng Cummins generator sets, Dongfeng Renault generator sets and Volvo generator sets, among which Dongfeng Cummins generator sets are sold at home and abroad.


  Since its establishment, the company has continuously focused on the technology research and development of generator sets, expanded the production scale of generator sets, improved generator set-related services, and gradually developed into a new modern private enterprise in Taizhou City. The company has a complete organization and management system, rich human resources, advanced technology research and development and process equipment capabilities, and complete testing equipment. The 'Haixing' brand 20-2000Kw diesel generator sets produced are widely used in shipping, petrochemical industry, highways, railways, water conservancy hubs, municipal engineering, postal and telecommunications, industrial and mining enterprises, hotels and other fields.


5. Main parameters

Unit modelUnit rated output

diesel engine

Fuel consumptionDimensions and weight
Capacity (KVA)Power(KW)Current(A)modelRated power(KW)Diesel (g/kw.h)Engine oil (g/kw.h)length x width x heightNet weight(kg)
HX-250GF313250261G128ZLD113082251.52960x900x16602900
HX-250GF313250261NT855-GA2942151.22960x1100x16602600
HX-300GF37530031312V135AZD3092161.34040x1250x19204500
HX-300GF375300313NT855-G43512151.23060x1100x17602800
HX-300GF375300313TAD1241GE3321971.04020x1196x16273180
HX-400GF500400418KTA19-G34482181.123360x1100x17603650
HX-400GF500400418TAD1641GE442199.51.123500x1300x18003400
HX-400GF50040041812V135BZLD4452251.53320x1350x17004100
HX-500GF625500522KTAA19G6A6202181.23860x1200x17603650
HX-500GF625500522TAD1642GE6202171.132960x900x16603800
HX-500GF62550052212V135BZLD115552251.63500x1480x17704540
HX-600GF750600626KTA38-G27312251.23860x1200x17605100
HX-600GF750600626D2842LE2036331931.243550x1500x18005100
HX-800GF100080083618V2000G638952051024600x1900x25007700
