1. Power range
520kW-2000kW

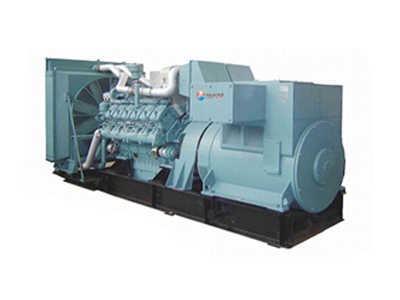

2. Overview of high-voltage generator set series
Haixing/high-voltage generator sets are powered by domestic and foreign diesel engines and comply with the national standard GB/T2820. It can be equipped with high-voltage generators such as Inge, Siemens and Kangfu. The high-voltage series generator sets are powered by domestic and foreign diesel engines and comply with the national standard 'GB2820 General Technical Conditions for Maintenance of Power Frequency Diesel Generators'. Referring to the 'ICE34-1' International Commission on Industrial and Electrical Engineering standard for rotating electrical machines, high-voltage series generator sets (6300V, 10500V) produced by domestic and foreign generators are selected. This series of units can be used for both diesel and heavy oil. It has the characteristics of high voltage regulation accuracy, good dynamic performance, small voltage waveform span, high efficiency, compact structure, convenient maintenance, reliable operation, long service life, and good economic performance.
3. Characteristics of high-voltage generator set series
Facilitates long-distance power transmission
Save transformer investment and reduce power loss
Stay away from noise pollution and reduce electromagnetic interference
4. High voltage generator set series parameters
| Unit model | Power (main use) (KVA) | Power (standby) (KVA) | Rated voltage(V) | Current (main) (A) | Current(standby)(A) | ||
| HX-520GFG | 520 | 650 | 572 | 715 | 10500 | 35.7 | 39.3 |
| HX-600GFG | 600 | 750 | 660 | 825 | 10500 | 41.2 | 45.4 |
| HX-640GFG | 640 | 800 | 704 | 880 | 10500 | 44.0 | 18.4 |
| HX-720GFG | 720 | 900 | 792 | 990 | 10500 | 49.5 | 54.4 |
| HX-800GFG | 800 | 1000 | 820 | 1100 | 10500 | 55.0 | 60.5 |
| HX-1000GFG | 1000 | 1250 | 1100 | 375 | 10500 | 68.7 | 75.6 |
| HX-1100GFG | 1100 | 1375 | 1200 | 1500 | 10500 | 75.6 | 82.5 |
| HX-1120GFG | 1120 | 1400 | 1230 | 1538 | 10500 | 77.0 | 84.5 |
| HX-1160GFG | 1160 | 1450 | 1300 | 1620 | 10500 | 79.7 | 89.4 |
| HX-1200GFG | 1200 | 1500 | 1300 | 1625 | 10500 | 12.5 | 89.4 |
| HX-1300GFG | 1300 | 1625 | 1450 | 1813 | 10500 | 39.4 | 99.7 |
| HX-1500GFG | 1500 | 1875 | 1600 | 2000 | 10500 | 103.1 | 110.0 |
| HX-1600GFG | 1600 | 2000 | 1800 | 2250 | 10500 | 110.0 | 121.7 |
| HX-1800GFG | 1800 | 2250 | 19190 | 2478 | 10500 | 123.7 | 106.1 |
| HX-2000GFG | 2000 | 2500 | 2200 | 2750 | 10500 | 137.5 | 151.2 |
| HX-1000GFG | 1000 | 1250 | 1100 | 1375 | 6300 | 68.7 | 75.6 |
| HX-1100GFG | 1100 | 1375 | 200 | 1500 | 6300 | 75.6 | 12.5 |
| HX-1120GFG | 1120 | 1400 | 1230 | 1538 | 6300 | 77.0 | 84.5 |
| HX-1160GFG | 1160 | 1450 | 1300 | 1625 | 6300 | 79.7 | 89.4 |
| HX-1200GFG | 1200 | 1500 | 1300 | 1647 | 6300 | 62.5 | 89.4 |
| HX-1300GFG | 1300 | 1625 | 1450 | 1813 | 6300 | 49.4 | 19.7 |
| HX-1500GFG | 1500 | 1875 | 1600 | 2000 | 6300 | 103.1 | 110.0 |
| HX-1600GFG | 1600 | 2000 | 1800 | 2250 | 6500 | 110.0 | 123.7 |
