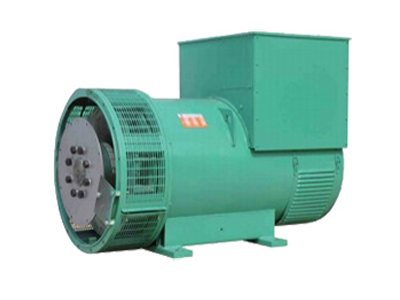

1. Overview of HX12-2000kW brushless three-phase synchronous generator series
HX series 12-2000kW brushless three-phase synchronous generator is a new type of generator designed and developed by ourselves by introducing, digesting and absorbing the generator technology of the 1990s.
The technical performance and installation dimensions of HX series generators comply with IEC standards and the National Standard of the People's Republic of China GB/T15548-95 'General Technical Conditions for Three-Phase Synchronous Generators Driven by Reciprocating Internal Combustion Engines'
The product performance is excellent, the quality is reliable, the shape is beautiful, and the product performance reaches the contemporary level.
2. Excellent electrical performance of HX12-2000kW brushless three-phase synchronous generator series
Steady-state voltage adjustment rate ≤ ±0.1%
Transient voltage regulation rate ≤±20%-15%
Voltage setting range ≥10%UN
Line voltage waveform sinusoidal distortion rate ≤5%
Voltage deviation rate ≤ 5% when three-phase asymmetric load
Efficiency average reaches level
3. Structural design of HX12-2000kW brushless three-phase synchronous generator series
Integral salient pole rotor, the magnetic pole windings are directly wound on the pole body, the iron core is ventilated, the heat dissipation effect is good, the winding temperature rise margin is large, the rotor is equipped with a full damping winding, the parallel operation is stable, the cylindrical steel plate frame, the appearance Smart and bold, with small overall size, light weight and novel shape, the AVR The dynamic voltage regulation has high precision, and the overall solid-sealed three-proof and anti-vibration performance is good. The overall structure is single-machine type (with excitation box) and small complete type (with control box). The transmission end cover has two structures: one is the end cover. With a protruding stop, the other is that the end cover and the connecting seat are cast into one piece to facilitate direct installation of the unit.
4. Environmental conditions for use of HX12-2000kW brushless three-phase synchronous generator series
Ambient air temperature≤40℃
Altitude: ≤1000m
Rated frequency and speed: 50Hz 1500r/min; 60Hz 1800r/min
Rated voltage: 400/230V three-phase four-wire system
At 60Hz, the voltage is as specified in the agreement
Relative air temperature: ≤90℃%
