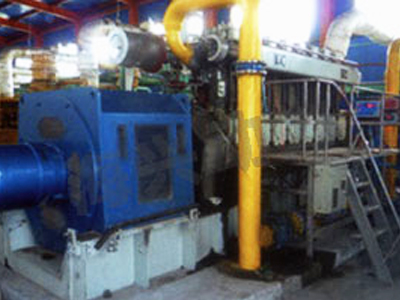

Introduction to type 300 low gas gas
The 8300 low-concentration gas generator set is developed on the basis of the 8300 high-concentration gas generator set and is mainly suitable for mixed gas gas in the concentration range of 8%-30%.
Conditions of use:
Low-concentration gas source conditions: low-concentration gas delivery pressure 5~15kPa, pressure change rate ≤1kPa/min, change rate ≤5%/min; impurity particle size ≤5μm, impurity content ≤30mg/Nm3, moisture content ~40mg/Nm3 Does not contain free water, gas temperature ~40℃, sulfur content ≤20mg/Nm3.
Technical features:
It is suitable for the gas concentration range of 8% to 30%, suitable for the characteristics of large fluctuations in the coal bed methane gas source, and can ensure that the output power of the unit remains constant.
The low-concentration gas transportation system uses flame cold wall extinguishing and fire blocking, wet water sealing fire blocking, wet water mist accompanying and other measures to ensure transportation. For pipe systems with long transportation distances, mixed fine water mist accompanying can also be used to deal with it.
Adopt electronically controlled mixer technology and closed-loop automatic control technology.
The ignition system produced by TnoNIc Company in the United States is used to obtain high ignition energy and ignition time to ensure ignition reliability.
The low speed of the generator set reduces engine wear, extends the service life of parts, and reduces the reserve of spare parts.
Adopting a double-layer water-cooled exhaust pipe structure, the exhaust temperature is low, the combustion is sufficient, and the exhaust temperature of each cylinder is even.
Coalbed Methane Engine has developed a gas engine intelligent management system, which can ensure the operation of the gas engine and enable remote monitoring of the gas engine unit.
The low concentration gas delivery system has the following security functions:
Wet water seal low water level alarm and protection
Wet water seal automatically replenishes water when water level is low
Continuous automatic detection of pipeline gas concentration and low gas concentration alarm
Continuous automatic detection of ambient gas concentration and high gas concentration alarm
Power-off protection when gas concentration exceeds standard
Main and backup water pump failure alarm and automatic switching protection
Low water level alarm in circulating pool

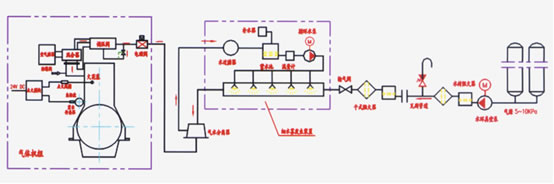

Principle diagram of low concentration gas transportation:
