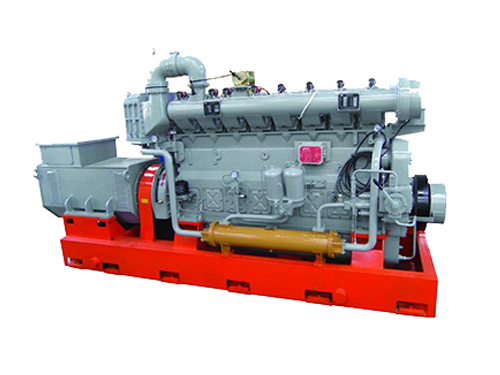

Z170 gas engine introduction:
Z170 series gas engines are small in size, light in weight and compact in structure. Combustible gases such as natural gas, liquefied petroleum gas, biogas, and coal gas are widely used in oil and gas fields, wineries, sewage treatment plants, coal mines, etc. They can meet various needs and are especially suitable for mobile power stations (distributed power supplies).
The Z170 series gas engine uses the ignition system produced by the American ALTRONIC company. The cylinder head, piston and gas supply system are designed to make the gas burn more fully in the cylinder. It is also equipped with an electronic speed regulator, pressure reducing valve, pressure regulating valve and mixer. and other components to make the system run more reliably.
Z170 biogas natural gas generator set technical specifications
project | 规 格 数 据 | ||||
| Unit model | Z6170ZLD/Z | Z6170ZLD/Z-1 | Z8170ZLD/Z | Z8170ZLD/Z-1 | |
Z6170ZLD/T | Z6170ZLD/T-1 | Z8170ZLD/T | Z8170ZLD/T-1 | ||
Generator model | 200GFZ | 250GFZ | 300GFZ | 400GFZ | |
200GFT | 250GFT | 300GFT | 400GFT | ||
Rated power (KW) | 200 | 250 | 300 | 400 | |
Current (A) | 361/187 | 451/234 | 541/281 | 722/374 | |
Voltage (V) | 400 / 690 | ||||
Rated frequency(Hz) | 50Hz | 60Hz | |||
Rated speed (r/min) | 1000 | 1500 | 1000 | 1500 | |
Power factor (cosφ) | 0.8 (hysteresis) | ||||
Gas heat rate MJ/(kW·h) | 10.5～11.5 | ||||
Oil consumption rate g/(kW·h) | ≤1.0 | ||||
Phase number and connection method | Three-phase four-wire system | ||||
Excitation mode | Brushless excitation | ||||
Starting mode | Compressed air starting or electric motor starting | ||||
Overall dimensions (L×B×H) (mm) | 4000×1400×2200 | 4500×1400×2200 | |||
Net mass(kg) | 6200 | 7600 | |||
