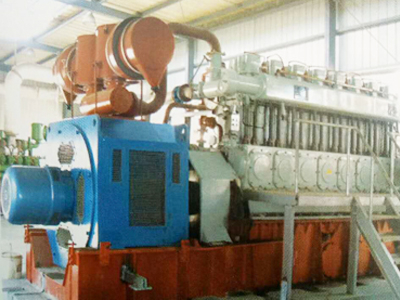

Type 300 biogas atural gas series:
Biogas is combustible gas (swamp gas, swamp gas) obtained from the fermentation of organic matter. Natural gas is a mineral that is mined from deep underground. Natural gas is generally a by-product of oil extraction. Judging from the source, biogas is not natural gas. However, the composition of both is the same, both are methane (CH4).
The main raw material of biogas is biomass. Farms, food factories, brewing companies, sewage treatment plants, garbage treatment plants and other enterprises all have a large amount of biogas resources that can be utilized. The comprehensive utilization of biogas can help reduce the greenhouse effect and achieve a virtuous ecological cycle, and can replace some petroleum, coal and other energy sources. At present, there are more than 1,000 large and medium-sized biogas projects built in my country, with an annual biogas output of approximately 260 million cubic meters. Biogas is the closed anaerobic fermentation of part of organic matter. After fermentation, part of the biogas will be contained and then collected. Nowadays, most enterprises with domestic waste or sewage with high COD content have sufficient biogas. Then let’s talk about the components of biogas. The components in biogas are very mixed, and the content of methane is relatively high. Moreover, methane is a flammable gas with a relatively high calorific value. The collected biogas is burned through the engine of the generator set, which is in the form of an internal combustion engine. The generated torque drives the rotor windings of the generator to complete the power generation process.
项 目 | 规 格 数 据 | |||||||||||||||
Unit model | 6300D/Z | 6300D/Z-1 | 8300D/Z-1 | 8300D/Z-2 | 8300ZLD/Z | 8300ZLD/Z-1 | 9300D/Z | 9300ZLD/Z-1 | ||||||||
6300D/T | 6300D/T-1 | 8300D/T-1 | 8300D/T-2 | 8300ZLD/T | 8300ZLD/T-1 | 9300ZLD/T | 9300ZLD/T-1 | |||||||||
Generator model | 400GFZ | 500GFZ | 600GFZ | 700GFZ | 1000GFZ | 1000GFZ | 1200GFZ | 1500GFZ | ||||||||
400GFT | 500GFT | 600GFT | 700GFT | 1000GFT | 1000GFT | 1200GFT | 1500GFT | |||||||||
Rated power (KW) | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | 1500 | ||||||||
Current (A) | 722/46/28 | 902/57/34 | 1083/69/41 | 1263/80/48 | 1443/92/55 | 1804/115/69 | 2165/137/82 | 2706/172/103 | ||||||||
Voltage (V) | 400/6300/10500 | |||||||||||||||
Rated frequency(Hz) | 50Hz | 60Hz | ||||||||||||||
Rated speed (r/min) | 500 | 600 | 500 | 600 | 500 | 600 | 600 | 750 | ||||||||
Power factor (cosφ) | 0.8 (hysteresis) | |||||||||||||||
Gas heat rate MJ/(kW·h) | 10.5~11.5 | |||||||||||||||
Oil consumption rate g/(kW·h) | ≤1.0 | |||||||||||||||
Phase number and connection method | Three-phase three-wire system or three-phase four-wire system | |||||||||||||||
Excitation mode | Brushless excitation | |||||||||||||||
Starting mode | Compressed air start | |||||||||||||||
Overall dimensions (L×B×H) (mm) | 5800×1600×2900 | 6400×1600×2900 | 6400×1600×3100 | 8500×1900×3700 | ||||||||||||
Net mass(kg) | 18000 | 22000 | 25000 | 41400 |
