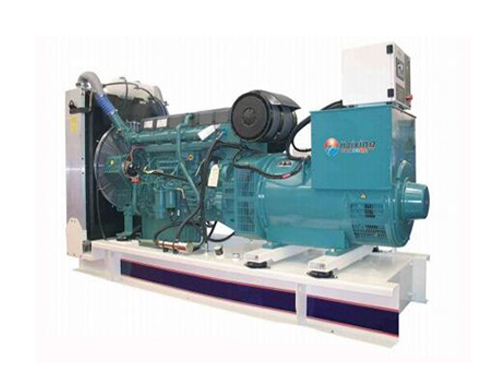

Volvo generator set

1. Product Overview

Volvo generator setJiangsu Haixing Power Engineering Company selected original Swedish VOLVO PENTA company series diesel engines to configure Siemens and Shanghai's well-known generators. Volvo series generator sets have the characteristics of low fuel consumption, low emissions, low noise and compact structure. So far, its engine production has reached more than 1 million units, and it is widely used in the power parts of automobiles, engineering machinery, ships, etc. Volvo engines are even more popular.Generator setideal motivation.

2. Product features

1. Power range: 68KW---550KW

2. Strong load-bearing capacity

3. The engine runs smoothly and has low noise

4. Fast, reliable cold starting performance

5. Compact design

6. Low fuel consumption and low operating costs

7. Less exhaust emissions

8. Volvo generator sets have a wide service network and sufficient spare parts supply




3. Display of main product models

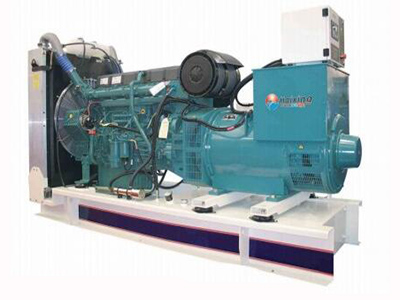

Volvo 400GF	Volvo 500GF

4. Working principle of the unit

The diesel engine drives the generator to run, converting the energy of the diesel into electrical energy. In the diesel engine cylinder, the clean air filtered by the air filter is fully mixed with the high-pressure atomized diesel fuel injected from the injector. Under the upward squeeze of the piston, the volume shrinks and the temperature rises rapidly, reaching the ignition point of the diesel fuel. The diesel is ignited, the mixed gas burns violently, expands rapidly in volume, and pushes the piston downward, which is called 'work'. Each cylinder performs work in sequence, and the thrust acting on the piston becomes the force that drives the crankshaft to rotate through the connecting rod, thereby driving the crankshaft to rotate. By installing the brushless synchronous alternator coaxially with the crankshaft of the diesel engine, the rotation of the diesel engine can be used to drive the rotor of the generator. Using the principle of 'electromagnetic induction', the generator will output an induced electromotive force, and a current can be generated through the closed load loop. .

5. Rated parameters

1. Rated power (pe): refers to the effective power that the unit can output under rated operating conditions, in kilowatts (kW) or megawatts (MW).

2. Rated power factor (cosφ): refers to the power factor of the motor at rated operation.

3. Rated voltage (Ue): refers to the line voltage of the unit during normal operation, in volts (V) or kilovolts (kW).

4. Rated current (Ie): refers to the line current of the generator set when operating in the rated state, the unit is ampere (A) or kiloamp (kA).

5. Rated speed (nc): The speed required by the generator set to maintain the frequency of alternating current at 50Hz, in revolutions per minute (r/min).

6. Rated efficiency (ηe): refers to the efficiency of the unit when operating in the rated state.

7. Rated frequency (fe): my country stipulates that the rated frequency is 50Hz.

8. Rated temperature rise: the degree by which the stator winding and rotor winding of the diesel generator set are allowed to rise above the ambient temperature during operation. Our country stipulates that the ambient temperature is calculated at 40°C.




6. Company Profile

       Jiangsu Haixing Power Engineering Co., Ltd., located in Guxi Industrial Park, Taixing City, Jiangsu Province, is a professional manufacturer focusing on the design, installation, construction and technical services of environmental management projects, as well as the production, sales and maintenance of generator sets. The company mainly produces Dongfeng Fengshen generator sets, Dongfeng Cummins generator sets, Dongfeng Renault generator sets and Volvo generator sets, among which Dongfeng Cummins generator sets are sold at home and abroad.

       Since its establishment, Haixing Power Engineering has continuously focused on the technology research and development of generator sets, expanded the production scale of generator sets, improved generator set-related services, and gradually developed into a new and modern well-known private enterprise in Taizhou City. The company has a complete organization and management system, rich human resources, advanced technology research and development and process equipment capabilities, and complete testing equipment. The 'Haixing' brand 20-2000Kw diesel generator sets produced are widely used in shipping, petrochemical industry, highways, railways, water conservancy hubs, municipal engineering, postal and telecommunications, industrial and mining enterprises, hotels and other fields.

7. Technical parameters
