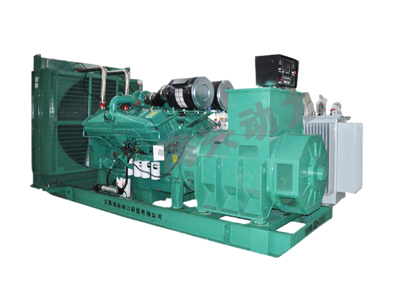

High voltage generator set

1. Product Overview

High voltage generator setIt is powered by domestic and foreign diesel engines, and in accordance with the national standard 'GB2820 General Technical Conditions for Power Frequency Diesel Generator Sets' and with reference to the 'IEC34-I' Electrotechnical Commission Rotating Electric Machine Standard, it is equipped with high-voltage series power generation produced by domestic and foreign generators. Unit (6300V, 10500V).

2. Product features

The high-voltage generator set is divided into diesel and heavy oil. It has the characteristics of high voltage regulation accuracy, good dynamic performance, small voltage waveform distortion, high efficiency, compact structure, easy maintenance, reliable operation, long service life, and good economic performance.

3. Requirements and conditions for parallel operation

The whole process of putting high-voltage generator sets into parallel operation is called parallel operation. One generator set is operated first and the voltage is sent to the bus bar, while the other generator set is put into parallel operation.Generator setAfter starting, it is parallel to hundreds of billions of generator sets. At the moment of closing, the generator set should not have harmful inrush current, and the rotating shaft should not be subject to sudden impact. After closing, the rotor should be quickly brought into synchronization, so the generator must meet the following conditions in parallel:

1. The effective value and waveform of the generator set voltage must be the same.

2. The voltages of both generators are in the same phase.

3. The frequency of the two generator sets must be the same.

4. The phase sequence of the two generator sets is consistent.




4. Company Profile

Jiangsu Haixing Power Engineering Co., Ltd., located in Guxi Industrial Park, Taixing City, Jiangsu Province, is a professional manufacturer focusing on the design, installation, construction and technical services of environmental management projects, as well as the production, sales and maintenance of generator sets. The company mainly produces Dongfeng Fengshen generator sets, Dongfeng Cummins generator sets, Dongfeng Renault generator sets and Volvo generator sets, among which Dongfeng Cummins generator sets are sold at home and abroad.

Since its establishment, the company has continuously focused on the technology research and development of generator sets, expanded the production scale of generator sets, improved generator set-related services, and gradually developed into a new modern private enterprise in Taizhou City. The company has a complete organization and management system, rich human resources, advanced technology research and development and process equipment capabilities, and complete testing equipment. The 'Haixing' brand 20-2000Kw diesel generator sets produced are widely used in shipping, petrochemical industry, highways, railways, water conservancy hubs, municipal engineering, postal and telecommunications, industrial and mining enterprises, hotels and other fields.

5. Main parameters
