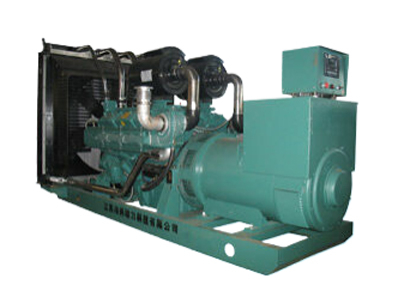

Wudongwandi diesel engine unit

1. Product Overview

Wudongwandi diesel generator setIt is Jiangsu Haixing Power Engineering Company that chooses Wuxi Engineering Co., Ltd.'s 'Wandi' brand diesel engines equipped with Inge, Siemens, Stanford, Shanghai, etc.dynamo. Based on the original excellent quality, Wudong Wandi diesel engine uses a P-type high-pressure oil pump with high oil supply rate and a multi-hole low-penetration fuel injector to make the engine more powerful and have better overall performance.

2. Unit characteristics

Wudong Wandi diesel generator set is assembled from diesel engine, generator, chassis, coupling and control system. The control system includes voltmeter, frequency meter, ammeter, DC meter, water temperature meter, oil temperature meter and oil pressure meter. , oil level indication, protection and switching system, etc. The starting method of the unit can be selected from manual start, electric start or self-starting, self-cutting and self-starting according to needs. According to user needs, the unit can be equipped with a bottom fuel tank, four protections, and can be equipped with low-noise, fully automatic or multiple parallel systems.

3. Fuel consumption calculation unit conversion formula

• 1L (liter) = 1000ML (ml)

• 1L (liter) = 1 liter

• 1KW (kilowatt) = 1000W (watt)

• 1KG (kilogram) = 1000G (gram) = 1L (liter)

• 1G (gram) = 0.001L (liter)

Note: Under the premise of the same specific gravity, the proportion of water and diesel is about 1:0.84-0.86, so one liter of diesel is equal to 0.84-0.86 kg, 1L=about 0.85KG.

4. Inspection of fuel injector

The fuel injector is a key component of the diesel engine. It is made of good materials and has exquisite manufacturing technology. If the fuel injection pump is normal and the fuel injector is not working properly, the diesel cannot burn normally, which will lead to increased fuel consumption of the diesel engine, reduced power, increased carbon deposits in the cylinder, and increased wear of the machine parts. Therefore, regular maintenance and upkeep must be carried out on the injectors.

• Fuel injector performance check

• (1) Inspection of the fuel injection quality of the injector
  Slowly and continuously press the tester handle to check the injection quality of the injector. A fuel injector with good performance should have an obvious and clear popping sound when injecting fuel, the atomization cone angle meets the requirements, and there is no late dripping of oil. Otherwise, the fuel injector should be re-cleaned or spare parts should be replaced.

• (2) Check the injection pressure of the injector
  During inspection, loosen the pressure regulating screw on the fuel injector of the generator set, install the fuel injector on the tester, and press the handle on the tester up and down repeatedly to fill the fuel injector and high-pressure oil pipe with diesel. Then slowly press the handle while observing the oil pressure gauge reading. When the reading starts to drop, it is the opening pressure of the injector, and its value should meet the standard requirements.




5. Introduction to Wudong Wandi Diesel Engine Company

Jiangsu Haixing Power Engineering Co., Ltd., located in Guxi Industrial Park, Taixing City, Jiangsu Province, is a professional manufacturer focusing on the design, installation, construction and technical services of environmental management projects, as well as the production, sales and maintenance of generator sets. The company mainly produces Dongfeng Fengshen generator sets, Dongfeng Cummins generator sets, Dongfeng Renault generator sets and Volvo generator sets, among which Dongfeng Cummins generator sets are sold at home and abroad.

Since its establishment, Haixing Power Engineering has continuously focused on the technical research and development of Wudongwandi diesel generator sets, expanded the production scale of generator sets, improved generator set-related services, and gradually developed into a new modern private enterprise in Taizhou City. The company has a complete organization and management system, rich human resources, advanced technology research and development and process equipment capabilities, and complete testing equipment. The 'Haixing' brand 20-2000Kw diesel generator sets produced are widely used in shipping, petrochemical industry, highways, railways, water conservancy hubs, municipal engineering, postal and telecommunications, industrial and mining enterprises, hotels and other fields.

6. Basic parameters of Wudong Wandi diesel engine unit
