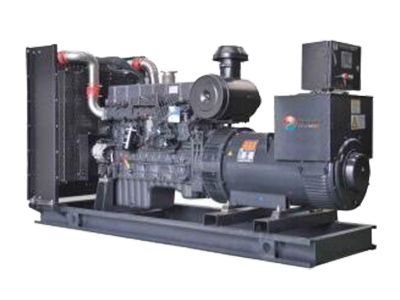

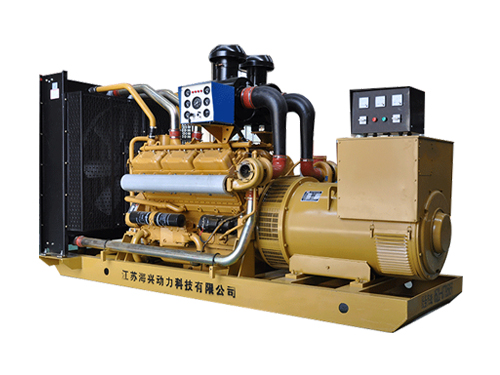

Shangdian diesel generator set

1. Product Overview

The Shangdai generator set is made by Jiangsu Haixing Power Engineering Company using the 'Dongfeng' series 135, SC series and other diesel engines of Shanghai Diesel Engine Co., Ltd., which are the sole proprietorship of Guangzhou Ingel, Wuxi Siemens and Shanghai generators. The Shanggu series diesel engine has stable quality, reliable performance, simple operation and convenient maintenance.

2. Product Features

1. Shangchai generator set adopts domestic Shanghai 135, SC series diesel engine

2. It is suitable for generators and control screens such as Marathon (China-US joint venture), Stanford Stamford (UK-owned), French Lilexemmar and other generators.

3. The generator set adopts a new type of shrink-mouth combustion chamber to meet the index

4. Good power performance, large torque reserves, and low fuel consumption and engine fuel consumption.

5. Flexible configuration, good stability, and can meet different user requirements.




3. Maintenance of fuel injectors

The fuel injector should be checked and adjusted once for about 700 hours. If the opening pressure is less than the specified value of 1Mpa or the needle valve is seriously damaged, the needle valve should be removed and placed in cleaning diesel. Use wooden chips to scrape off the carbon deposits, use fine steel wire to clear the spray holes, and then debug after installation. The fuel injection pressure difference between the cylinders of the same machine must be less than 1Mpa.

In order for the diesel injected into the cylinder to burn in time, the oil supply time of the oil pump must be checked regularly. If the fuel supply time is too early, the vehicle will have difficulty starting and faults in knocking the cylinder; if the fuel supply time is too late, it will cause black smoke to emit exhaust gas, the machine temperature is too high, and fuel consumption will increase.

The mating accuracy of the injector needle valve pair is high and the injection hole diameter is very small. Therefore, the specified grade of clean diesel must be selected strictly according to seasonal changes, otherwise the injector will not work normally.

When cleaning the fuel injector needle valve pair, do not collide with other hard objects, nor can it fall to the ground, so as to avoid bruising and scratching. When replacing the needle valve pair of the injector, the new pair should be placed in hot diesel oil at 80℃ for about 10 seconds, so that the anti-rust oil can be fully dissolved, and then the needle valve is pulled back and forth in the valve body in the clean diesel to wash it, so as to avoid the failure of the needle valve sticking to the anti-rust oil when the injector is working due to the melting of the anti-rust oil.

4. Company Profile

Jiangsu Haixing Power Engineering Co., Ltd., located in Guxi Industrial Park, Taixing City, Jiangsu Province, is a professional manufacturer focusing on the design, installation, construction and technical services of environmental governance projects, as well as the production, sales and maintenance of generator sets. The company mainly produces Dongfeng Fengshen generator sets, Dongfeng Cummins generator sets, Dongfeng Renault generator sets and Volvo generator sets, among which Dongfeng Cummins generator sets are sold at home and abroad.

Since its establishment, Haixing Power Engineering has been continuously focusing on the technical research and development of Shangchai generator sets, expanding production scale, and improving generator set-related services, and gradually developing into a new modern private enterprise in Taizhou City. The company has complete organization and management system, rich human resources, advanced technology research and development and process equipment strength, and complete testing equipment. The 'Haixing' brand 20-2000Kw diesel generator sets produced are widely used in ships, petrochemicals, highways, railways, water conservancy hubs, municipal engineering, postal and telecommunications, industrial and mining enterprises, hotels and other fields.

V. Basic parameters
