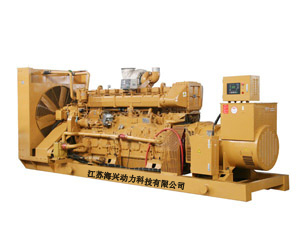

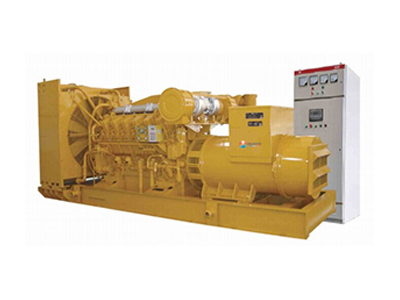

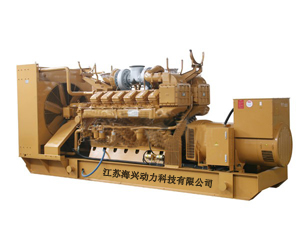

Jichai generator set

1. Product Overview

The Jichai generator set series is produced by Jiangsu Haixing Power Engineering Co., Ltd. using the 'Chidong' brand diesel engines of Jinan Diesel Engine Co., Ltd., a large enterprise directly affiliated to PetroChina, supporting generators from Inge, Siemens, Stanford, Lanzhou Electric, and Shanghai. It is widely used in oil fields, mines, ships, land power generation and other fields.

2. Product Features of Jichai Generator Set

1. 此Diesel generator setAdopt diesel engines produced by Jinan Diesel Engine Co., Ltd.

2. Compact structure, high power, stable and reliable performance

3. Jichai generator sets have mature technology, easy-to-purchase spare parts, long history, and strong supporting adaptability.




3. Main products

Jichai 8190ZLC-600KW	Jichai Z12V190BD7-900KW

4. Analysis of abnormal sound of the unit

1. The fuel injection time of the diesel engine is too early or too late: there is a rhythmic crisp metal knocking sound or a low and unclear knocking sound in the cylinder. At this time, the injection advance angle should be adjusted;

2. The connecting rod bearing bush is worn and the fitting gap is too large: During operation, the impact of the mechanical parts is heard in the crankcase. When the diesel engine speed is suddenly reduced, a heavy and powerful impact sound can be heard. If this situation occurs, the bearing bush should be disassembled and inspected if necessary. replace;

3. The piston pin and the connecting rod small end bushing hole are too loose: there is a light and sharp sound when the diesel engine is running, which is especially clear when running at constant speed. Replace the connecting rod small end bushing to make it within the specified clearance range;

4. The gap between the piston and the cylinder liner is too large: a knocking sound is heard on the outer wall of the cylinder when the diesel engine is running, and the knocking sound intensifies when the speed increases. At this time, the piston should be replaced or the cylinder liner should be replaced depending on the wear condition;

5. The diesel engine valve spring is broken, the tappet is bent, and the push rod sleeve is worn: there is a rhythmic slight knocking sound throughout the cylinder. At this time, the diesel engine parts should be inspected and damaged parts should be replaced, and the valve clearance should be corrected;

6. The radial clearance of the rolling main bearing of the crankshaft is too small: the diesel engine makes a particularly sharp sound during operation, and the sound becomes clearer when the throttle is increased; the radial clearance of the rolling main bearing of the crankshaft is too large: a 'huohuo' sound is made during operation. The rolling main bearings that make noise should be checked and replaced if necessary.




5. Company Profile

       Jiangsu Haixing Power Engineering Co., Ltd., located in Guxi Industrial Park, Taixing City, Jiangsu Province, is a professional manufacturer focusing on the design, installation, construction and technical services of environmental management projects, as well as the production, sales and maintenance of generator sets. The company mainly produces Dongfeng Fengshen generator sets, Dongfeng Cummins generator sets, Dongfeng Renault generator sets and Volvo generator sets, among which Dongfeng Cummins generator sets are sold at home and abroad.

       Since its establishment, the company has continuously focused on the technical research and development of Jichai generator sets, expanded the production scale of generator sets, improved generator set-related services, and gradually developed into a new and modern well-known private enterprise in Taizhou City. The company has a complete organization and management system, rich human resources, advanced technology research and development and process equipment capabilities, and complete testing equipment. The 'Haixing' brand 20-2000Kw diesel generator sets produced are widely used in shipping, petrochemical industry, highways, railways, water conservancy hubs, municipal engineering, postal and telecommunications, industrial and mining enterprises, hotels and other fields.

6. Main parameters
