24kW-500kW

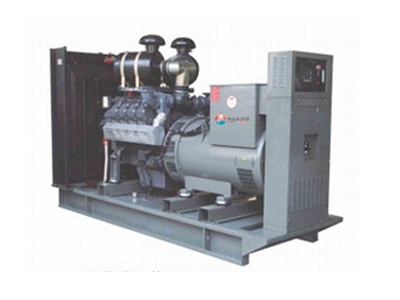

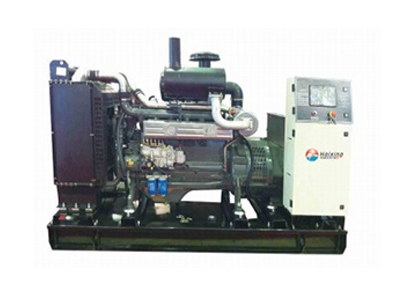

2. Overview of Deutz generator sets
The Haixing/Deutz series generator set engines are jointly produced by introducing the technology of the German KHD company. They include water-cooled, air-cooled, and gas engines, and are equipped with domestic and foreign generators such as Stamford, Leroy Somer, Marathon, and Haixing. Advanced design, excellent performance, small size, light weight, low magnetic sound, strong applicability, especially suitable for use in high temperature, high cold, drought and water shortage areas.
3. Deutz generator set parameters
| Unit model | Output power (KW/KVA) | Diesel engine model | Diesel engine power main/standby (KW) | Number of cylinders | Bore/stroke(mm) | Displacement(L) | Oil capacity (L) | fuel consumption | Unit overall dimensions L*W*H (mm) | Unit weight (kg) | |
| HX-24GF | 24 | 30 | D226B-3D | 30 | 3 | 105/120 | 3.12 | 18 | 208 | 1730×750×1190 | 640 |
| HX-30GF | 30 | 37.5 | TD226B-3D | 45 | 3 | 105/120 | 3.12 | 18 | 208 | 1730×750×1190 | 730 |
| HX-50GF | 50 | 62.5 | TD226B-4D | 60 | 4 | 105/120 | 4.16 | 20 | 208 | 2050×750×1650 | 800 |
| HX-75GF | 75 | 93.75 | TD226B-60 | 90 | 6 | 105/120 | 6.24 | 20 | 205 | 2350×850×1690 | 1250 |
| HX-100GF | 100 | 125 | TBO2268-60 | 120 | 6 | 105/120 | 6.24 | 22 | 198 | 2550×850×1800 | 1380 |
| HX-120GF | 120 | 150 | TBD226B-6D5 | 132 | 6 | 105/120 | 6.25 | 22 | 198 | 2550×850×1800 | 1500 |
| HX-206GF | 200 | 250 | BF6M1015-GA | 208/231 | 6 | 125/130 | 11.906 | 22 | 189 | 2720×1370×2130 | 2740 |
| HX-250GF | 250 | 312.5 | BF6M1015C-G2A | 256/285 | 6 | 132/145 | 11.906 | 22 | 189 | 3000×1690×2130 | 3200 |
| HX-300GF | 300 | 375 | BF6M1015C-G4 | 310/345 | 6 | 132/145 | 11.906 | 22 | 189 | 3000×1690×2130 | 3500 |
| HX-350GF | 350 | 437.5 | BFBM1015C-G1A | 388/418 | 8 | 132/145 | 15.874 | 28 | 189 | 3000×1690×2130 | 3600 |
| HX-400GF | 400 | 500 | BF8M1015CP-G1A | 413/459 | 8 | 132/145 | 15.874 | 28 | 189 | 3000×1690×2130 | 3700 |
| HX-500GF | 500 | 625 | BF8M1015CP-G4 | 482/530 | 8 | 132/145 | 15.874 | 28 | 189 | 3200×1690×2130 | 4000 |
| HX-500GF | 500 | 625 | BF8M1015CP-G5 | 509/560 | 8 | 132/145 | 15.874 | 28 | 189 | 3200×1690×2130 | 4000 |
