1. Power range
64kW-600kW

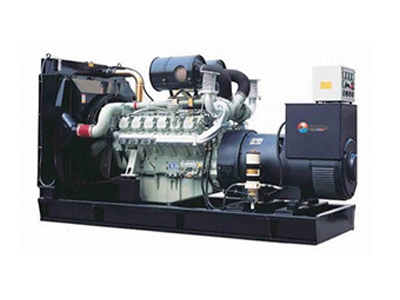

2. Overview of Daewoo generator sets in South Korea
Haixing/Doshan series generators are made by our company using P series engines produced by Doosan Daye Co., Ltd. in South Korea, equipped with domestic and foreign generators such as Stanford, Lilysenma, Marathon, and Haixing. The Doosan series engines are recognized by the world for their small size, light weight, strong anti-surge load capacity, low noise, economical and reliable characteristics.
3. Korean Daewoo generator set parameters
| Unit model | Output power (KW/KVA) | Diesel engine model | Diesel engine power main/standby (KW) | Number of cylinders | Bore/stroke (mm) | Displacement (L) | Engine oil capacity (L) | Fuel consumption | Unit size L*W*H(mm) | Unit weight (kg) | |
| HX-64GF | 64 | 80 | D1146 | 75/88 | 6 | 111/139 | 8 | 17.5 | 202 | 2370×790×1200 | 1050 |
| HX-100GF | 100 | 125 | D1146T | 107/118 | 6 | 111/139 | 8 | 17.5 | 200 | 2400×790×1200 | 1200 |
| HX-140GF | 140 | 175 | P086T1-1 | 149/164 | 6 | 111/139 | 8 | 17.5 | 200 | 2400×790×1300 | 1400 |
| HX-160GF | 160 | 200 | P086T1 | 177/199 | 6 | 111/139 | 8 | 17.5 | 202 | 2500×800×1400 | 1600 |
| HX-220GF | 220 | 275 | P126TI | 241/272 | 6 | 123/155 | 11 | 23 | 200 | 2800×900×1500 | 2200 |
| HX-250GF | 250 | 312.5 | P126TI-11 | 265/294 | 6 | 126/155 | 11 | 23 | 202 | 2910×1050×1530 | 2450 |
| HX-300GF | 300 | 375 | P158LE-1 | 327/362 | 8 | 123/155 | 14.6 | 28 | 204 | 3120×1390×1830 | 2800 |
| HX-320GF | 320 | 400 | P158LE | 363/414 | 8 | 128/142 | 14.6 | 28 | 202 | 3120×1390×1830 | 2900 |
| HX-350GF | 350 | 437.5 | P158LE-S | 402/441 | 8 | 128/142 | 14.6 | 28 | 202 | 3120×1400×1830 | 3000 |
| HX-400GF | 400 | 500 | DP158LC | 449/408 | 8 | 128/142 | 14.6 | 22 | 99.6 | 3120×1450×1815 | 2760 |
| HX-500GF | 450 | 5625 | DP158LD | 510/464 | 8 | 128/142 | 14.6 | 22 | 115 | 3120×1450×1815 | 2800 |
| HX-520GF | 550 | 687.5 | DP222LB | 664/604 | 12 | 128/142 | 21.9 | 40 | 147 | 2900×1660×1975 | 3250 |
| HX-600GF | 600 | 750 | DP222LC | 723/657 | 12 | 128/142 | 21.9 | 40 | 160 | 2900×1660×1975 | 3270 |
