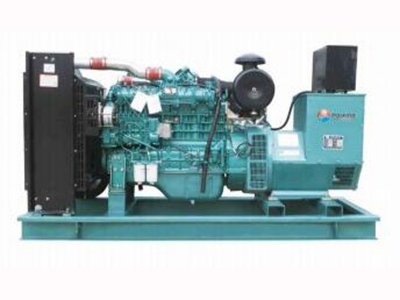

Yuchai generator sets use sound insulation materials, which have good sound insulation effects. They are equipped with independent silent rooms to further reduce noise; they use lift-type lights to both indicate power generation and provide lighting; and install rainproof sheds to prevent rot caused by long-term rain; Install a rainproof base, and raise the original base as required to prevent flooding in waterlogged areas; a series of components such as engines, generator sets, operation panels, and control areas of different brands can be customized according to customer requirements, allowing for free combinations High is a major feature of our products.
Unit model | Output power (KW/KVA) | Diesel engine model | Diesel engine power main/standby (KW) | Number of cylinders | Bore/stroke(mm) | Displacement(L) | Oil capacity (L) | fuel consumption | Unit overall dimensions L*W*H (mm) | Unit weight (kg) | |
HX-30GF | 30 | 37.5 | YC4D60-D21 | 40/44 | 4 | 108/115 | 4.214 | 11-13 | 205 | 1900×780×980 | 930 |
HX-40GF | 40 | 50 | YC4D85Z-D20 | 55/60.5 | 4 | 108/115 | 4.214 | 11-13 | 200 | 1900×780×980 | 970 |
HX-50GF | 50 | 62.5 | YC4A1002-020 | 70/73.5 | 4 | 108/132 | 4.837 | 11-13 | 200 | 2000×780×1350 | 970 |
HX-75GF | 75 | 93.75 | YC6B135Z-020 | 90/99 | 6 | 108/125 | 6.871 | 14-17 | 202 | 2670×720×1290 | 1400 |
HX-100GF | 100 | 125 | YO6B155L-D21 | 103/113 | 6 | 108/125 | 6.871 | 14-17 | 200 | 2718×790×1290 | 1520 |
HX-120GF | 120 | 150 | YO6B180L-D20 | 120/132 | 6 | 108/125 | 6.871 | 14-17 | 200 | 2520×1020×1140 | 1700 |
HX-150GF | 150 | 187.5 | YC6A230L-020 | 155/170.5 | 6 | 108/132 | 7.252 | 20-22 | 192 | 2520×1020×1140 | 1800 |
HX-200GF | 200 | 250 | YOBM350L-D20 | 235/258.5 | 6 | 120/145 | 9.839 | 28 | 197 | 2800×1100×1800 | 2450 |
HX-250GF | 250 | 3125 | YOSMK420L-020 | 281/309 | 6 | 123/145 | 10.338 | 28 | 196 | 3000×1020×1800 | 2550 |
HX-300GF | 300 | 375 | YC6MJ480L-D20 | 321/352 | 6 | 131/145 | 11.726 | 28 | 196 | 3100×1020×1800 | 2550 |
HX-350GF | 350 | 437.5 | YOBT600L-022 | 401/441 | 6 | 145/165 | 16.35 | 52 | 196 | 3100×1020×1800 | 2800 |
HX-400GF | 400 | 500 | YO6T660L-D20 | 441/485 | 6 | 145/165 | 16.35 | 52 | 196 | 3800×1350×1850 | 3300 |
HX-500GF | 500 | 625 | YO6T700L-D20 | 468/515 | 6 | 145/165 | 16.35 | 52 | 196 | 4500×1750×1934 | 3800 |
HX-600GF | 600 | 750 | YD6TD840L-020 | 560/616 | 6 | 152/180 | 19.57 | 52 | 195 | 4500×1750×1934 | 6800 |
HX-700GF | 700 | 875 | YOBC1020L-020 | 680/748 | 6 | 200/210 | 39.584 | 180 | 196 | 4500×1750×2100 | 7000 |
HX-800GF | 800 | 1000 | YD8C1220L-020 | 815/897 | 6 | 200/210 | 39.584 | 180 | 195 | 4500×1750×2100 | 7200 |
HX-900GF | 900 | 1125 | YO8C1320L-D20 | 880/968 | 6 | 200/210 | 39.584 | 180 | 195 | 5000×1800×2100 | 7500 |
