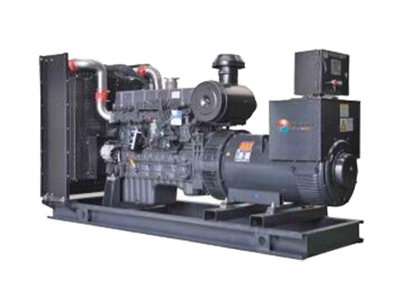

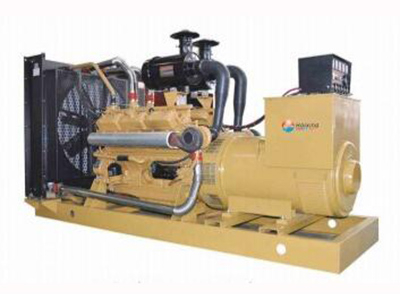

Haixing/Shangchai series diesel generator set is made by our company using Shanghai Diesel Engine Co., Ltd. series diesel engines with Stanford, Marathon, Siemens, Haixing and other domestic and foreign brands. Its excellent power, economy, reliability, low operating costs and chain three-pack and accessories supply are highly favored by users.
| Unit model | Output power (KW/KVA) | Diesel engine model | Diesel engine power main/standby (KW) | Number of cylinders | Bore/stroke (mm) | Displacement (L) | Engine oil capacity (L) | Fuel consumption | Unit size L*W*H(mm) | Unit weight (kg) | |
| HX-50GF | 50 | 62.5 | SC4H95D2 | 62/68 | 4 | 105/124 | 4.3 | 15 | 196 | 1960×750×1300 | 950 |
| HX-75GF | 75 | 93.75 | SC4H116D2 | 78/86 | 4 | 105/124 | 4.3 | 15 | 195 | 1900×900×1300 | 1050 |
| HX-100GF | 100 | 125 | SC4H160D2 | 105/110 | 4 | 105/124 | 4.3 | 15 | 196 | 2000×900×1300 | 1150 |
| HX-120GF | 120 | 150 | SC4H180D2 | 120/132 | 4 | 105/124 | 4.3 | 15 | 196 | 2100×900×1300 | 1300 |
| HX-150GF | 150 | 187.5 | SC7H230D2 | 155/170 | 6 | 105/124 | 6.5 | 20 | 196 | 2500×900×1630 | 1600 |
| HX-150GF | 150 | 187.5 | SC7H250D2 | 168/185 | 6 | 105/124 | 6.5 | 20 | 196 | 2500×900×1630 | 1600 |
| HX-150GF | 150 | 187.5 | SC8D280D2 | 185/204 | 6 | 114/135 | 8.28 | 22 | 196 | 2500×900×1630 | 1600 |
| HX-290GF | 200 | 250 | SC9D310D2 | 208/228 | 6 | 114/144 | 8.82 | 22 | 196 | 3100×1020×1780 | 1950 |
| HX-250GF | 250 | 312.5 | SC9D340D2 | 228/255 | 6 | 114/144 | 8.82 | 27 | 196 | 3100×1020×1780 | 1950 |
| HX-280GF | 280 | 350 | SC12E460D2 | 307/338 | 6 | 128/153 | 11.8 | 37 | 195 | 3100×1020×1780 | 2700 |
| HX-300GF | 300 | 375 | SC15G500D2 | 330/373 | 6 | 135/165 | 14.16 | 33 | 196 | 3100×1020×1780 | 2700 |
| HX-350GF | 350 | 437.5 | SC25G610D2 | 404/445 | 12 | 136/155 | 26.6 | 65 | 202 | 3500×1400×1850 | 4000 |
| HX-400GF | 400 | 500 | SC25G690D2 | 455/505 | 12 | 135/155 | 26.6 | 65 | 202 | 3500×1400×1850 | 4500 |
| HX-450GF | 450 | 562.5 | SC27G755D2 | 505/555 | 12 | 135/155 | 26.6 | 65 | 202 | 3600×1400×1850 | 4500 |
| HX-500GF | 500 | 625 | SC27G830D2 | 555/610 | 12 | 135/155 | 26.6 | 65 | 202 | 4350×1750×2189 | 4460 |
| HX-600GF | 600 | 750 | SC33W99002 | 660/726 | 6 | 180/215 | 32.8 | 75 | 215 | 4550×1750×2189 | 5860 |
Haixing/Shangchai series diesel generator set is made by our company using Shanghai Diesel Engine Co., Ltd. series diesel engines with Stanford, Marathon, Siemens, Haixing and other domestic and foreign brands. Its excellent power, economy, reliability, low operating costs and chain three-pack and accessories supply are highly favored by users.
| Unit model | Output power (KW/KVA) | Diesel engine model | Diesel engine power main/standby (KW) | Number of cylinders | Bore/stroke (mm) | Displacement (L) | Engine oil capacity (L) | Fuel consumption | Unit size L*W*H(mm) | Unit weight (kg) | |
| HX-50GF | 50 | 62.5 | SC4H95D2 | 62/68 | 4 | 105/124 | 4.3 | 15 | 196 | 1960×750×1300 | 950 |
| HX-75GF | 75 | 93.75 | SC4H116D2 | 78/86 | 4 | 105/124 | 4.3 | 15 | 195 | 1900×900×1300 | 1050 |
| HX-100GF | 100 | 125 | SC4H160D2 | 105/110 | 4 | 105/124 | 4.3 | 15 | 196 | 2000×900×1300 | 1150 |
| HX-120GF | 120 | 150 | SC4H180D2 | 120/132 | 4 | 105/124 | 4.3 | 15 | 196 | 2100×900×1300 | 1300 |
| HX-150GF | 150 | 187.5 | SC7H230D2 | 155/170 | 6 | 105/124 | 6.5 | 20 | 196 | 2500×900×1630 | 1600 |
| HX-150GF | 150 | 187.5 | SC7H250D2 | 168/185 | 6 | 105/124 | 6.5 | 20 | 196 | 2500×900×1630 | 1600 |
| HX-150GF | 150 | 187.5 | SC8D280D2 | 185/204 | 6 | 114/135 | 8.28 | 22 | 196 | 2500×900×1630 | 1600 |
| HX-290GF | 200 | 250 | SC9D310D2 | 208/228 | 6 | 114/144 | 8.82 | 22 | 196 | 3100×1020×1780 | 1950 |
| HX-250GF | 250 | 312.5 | SC9D340D2 | 228/255 | 6 | 114/144 | 8.82 | 27 | 196 | 3100×1020×1780 | 1950 |
| HX-280GF | 280 | 350 | SC12E460D2 | 307/338 | 6 | 128/153 | 11.8 | 37 | 195 | 3100×1020×1780 | 2700 |
| HX-300GF | 300 | 375 | SC15G500D2 | 330/373 | 6 | 135/165 | 14.16 | 33 | 196 | 3100×1020×1780 | 2700 |
| HX-350GF | 350 | 437.5 | SC25G610D2 | 404/445 | 12 | 136/155 | 26.6 | 65 | 202 | 3500×1400×1850 | 4000 |
| HX-400GF | 400 | 500 | SC25G690D2 | 455/505 | 12 | 135/155 | 26.6 | 65 | 202 | 3500×1400×1850 | 4500 |
| HX-450GF | 450 | 562.5 | SC27G755D2 | 505/555 | 12 | 135/155 | 26.6 | 65 | 202 | 3600×1400×1850 | 4500 |
| HX-500GF | 500 | 625 | SC27G830D2 | 555/610 | 12 | 135/155 | 26.6 | 65 | 202 | 4350×1750×2189 | 4460 |
| HX-600GF | 600 | 750 | SC33W99002 | 660/726 | 6 | 180/215 | 32.8 | 75 | 215 | 4550×1750×2189 | 5860 |
