1. Power range
24kW-2000kW

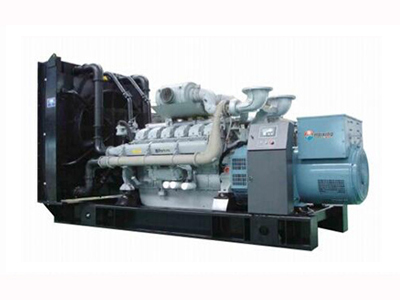

2. Overview of Perkins generator set
Haixing/Perkins (PERKINS) series diesel generators are produced by our company using diesel engines from Perkins Power Co., Ltd. (UK), and are matched with generators of Stanford, Leroy-Somer, Marathon, Siemens, Haixing and other brands. become. Perkins engines have fast and reliable cold start performance, adopt advanced technology, optimize the combustion process, have low energy consumption and low noise, are suitable for use in high-altitude environments, and are favored by the majority of users.
3. Perkins generator set parameters
| HX-24GF | 24 | 30 | 1103A-330 | 31/34 | 3 | 105/127 | 3.3 | 8 | 214 | 1750×710×1324 | 660 |
| HX-36GF | 36 | 45 | 1103A-33TG1 | 47/51.7 | 3 | 105/127 | 33 | 8 | 215 | 1960×752×1200 | 800 |
| HX-48GF | 48 | 60 | 1103A-33TG2 | 61/67 | 3 | 105/127 | 3.3 | 8 | 215 | 1960×752×1200 | 820 |
| HX-50GF | 50 | 62.5 | 1104A-44TG1 | 66/72.6 | 4 | 105/127 | 4.4 | 8 | 211 | 2050×630×1150 | 1000 |
| HX-64GF | 64 | 80 | 1104A-44TG2 | 81/89.1 | 4 | 105/127 | 4.4 | 8 | 216 | 2060×630×1150 | 1000 |
| HX-75GF | 75 | 93.75 | 1104C-44TAG1 | 82/90.2 | 4 | 105/127 | 4 | 8 | 224 | 2100×752×1300 | 900 |
| HX-100GF | 100 | 125 | 1104C-44TAG2 | 103/113 | 4 | 105/127 | 4.4 | 8 | 206 | 2300×752×1300 | 1100 |
| HX-100GF | 100 | 125 | 1006TG2A | 105/115.5 | 6 | 100/127 | 5.99 | 16.1 | 208 | 2640×780×1270 | 1350 |
| HX-120GF | 120 | 150 | 1006TAG2 | 143/157.3 | 6 | 100/127 | 5.99 | 19 | 208 | 2600×780×1370 | 1360 |
| HX-150GP | 150 | 187.5 | 1106C-E68TAG4 | 180/196 | 6 | 105/127 | 6.6 | 16.5 | 207 | 2800×900×1400 | 1500 |
| HX-200GR | 200 | 250 | 1306C-E87TAG4 | 217/238.7 | 6 | 116.6/135.9 | 8.7 | 28.3 | 217 | 2820×900×1570 | 1950 |
| HX-200GF | 200 | 250 | 1306C-E87TAG6 | 239/262.9 | 6 | 116.6/135.9 | 8.7 | 28.3 | 216 | 2870×900×1650 | 2350 |
| HX-300GF | 300 | 375 | 2206C-E13TAG2 | 305/335.5 | 6 | 130/157 | 12.5 | 40 | 201 | 3150×950×1900 | 2400 |
| HX-3Q9GF | 300 | 375 | 2206C-E13TAG3 | 349/383.9 | 6 | 130/157 | 12.5 | 40 | 201 | 3150×950×1900 | 2400 |
| HX-350GF | 350 | 437.5 | 2506A-E15TAG1 | 396/436 | 6 | 137/171 | 15 | 62 | 216 | 3300×1150×1950 | 3200 |
| HX-400GF | 400 | 500 | 2506A-E15TAG2 | 434/477.4 | 6 | 137/171 | 15 | 62 | 211 | 3300×1150×1950 | 3200 |
| HX-500GF | 500 | 625 | 2806A-E18TAG1 | 522/574.2 | 6 | 145/183 | 18.13 | 68 | 198 | 3300×1500×2100 | 3800 |
| HX-500GF | 500 | 625 | 2806A-E18TAG2 | 565/621.5 | 6 | 145/183 | 18.13 | 68 | 198 | 3300×1500×2100 | 3800 |
| HX-600GR | 600 | 750 | 4006-23TAG2A | 646/710.6 | 6 | 160/190 | 22.92 | 114 | 207 | 1750×1700×2100 | 5200 |
| HX-630GF | 630 | 787.5 | 4006-23TAG3A | 705/775.5 | 6 | 160/190 | 22.92 | 114 | 207 | 1750×1700×2100 | 5700 |
| HX-700GF | 700 | 875 | 4008TAG1A | 767/843 | 8 | 160/190 | 30.56 | 153 | 202 | 4960×1990×2300 | 6800 |
| HX-800GF | 800 | 1000 | 4008TAG2A | 861/947.1 | 8 | 160/190 | 30.56 | 165 | 202 | 4960×1990×2300 | 7200 |
| HX-1000GF | 1000 | 1250 | 4012-46TWG2A | 1055/1160.5 | 12 | 160/190 | 45.84 | 178 | 209 | 5300×2190×2450 | 9400 |
| HX-1000GF | 1000 | 1250 | 4012-46TWG3A | 1149/1263.9 | 12 | 160/190 | 45.84 | 178 | 209 | 4900×1800×2450 | 9500 |
| HX-1100GF | 1100 | 1375 | 4012-46TAG2A | 1267/1393.7 | 12 | 160/190 | 45.84 | 178 | 209 | 5300×2190×2450 | 9400 |
| HX-1500GF | 1500 | 1875 | 4016TAG1A | 1537/1691 | 16 | 160/190 | 61.12 | 237 | 207 | 6800×2780×3500 | 12000 |
| HX-1650GF | 1650 | 2062.5 | 4016TAG2A | 1766/1942.6 | 16 | 160/190 | 61.12 | 237 | 207 | 6800×2780×3500 | 12600 |
| HX-1800GF | 1800 | 2250 | 4016-61TRG3A | 1875/2062.5 | 16 | 160/190 | 61.12 | 237 | 210 | 6800×2780×3500 | 13400 |
