1. Power range
600kW-4380kW

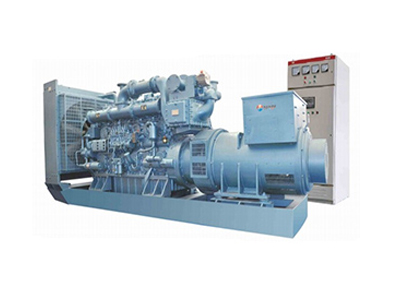

2. Overview of CSR Yuchai Generator Sets
Haixing/CSR Yuchai series generator sets are made by our company using engines produced by CSR Yuchai Sichuan Engine Co., Ltd. to match domestic and foreign generators such as Stamford, Leroy-Somer, Marathon, and Haixing. CSR Yuchai Company has imported advanced equipment such as airframes, rod feeders, and cylinder head machining centers from Germany, Sweden and other countries, enabling all key processes of key components to be 'CNC-controlled'. Our high-power medium-speed machines are widely used in railways, metallurgy, ships and countries in Central Asia, Southeast Asia, Central Africa and other countries, and are favored by the majority of users.
3. Parameters of CSR Yuchai generator set
Unit model | Output power (KW/KVA) | Diesel engine model | Diesel engine power main/standby (KW) | Number of cylinders | Bore/stroke(mm) | Displacement(L) | Oil capacity (L) | fuel consumption | Unit overall dimensions L*W*H (mm) | Unit weight (kg) | |
HX-600GF | 600 | 750 | NY6200 | 680/748 | 6 | 200/210 | 39.584 | 150 | 195 | 4390×1549×2297 | 8000 |
HX-900GF | 900 | 1125 | 6240ZJ | 1000/1100 | 6 | 240/275 | 74.64 | 795 | 204 | 6500×1635×2580 | 225000 |
HX-1140GF | 1140 | 1425 | NY6210 | 1300 | 6 | 210/315 | 65.46 | 1079 | 185 | 6300×2050×3500 | 243000 |
HX-1200GF | 1200 | 1500 | 6280ZJ | 1450 | 6 | 280/285 | 105.3 | 750 | 198 | 7816×2690×3490 | 213000 |
HX-1350GF | 1350 | 1687.5 | NY7210 | 1515 | 7 | 210/315 | 76.37 | 1207 | 185 | 7000×2050×3500 | 270000 |
HX-1520GF | 1520 | 1900 | NY8210 | 1735 | 8 | 210/315 | 87.28 | 1335 | 185 | 7800×2050×3500 | 295000 |
HX-1650GF | 1650 | 2062.5 | 12V240ZJC | 1850 | 12 | 240/275 | 149.28 | 852 | 204 | 7100×1950×3000 | 320000 |
HX-1720GF | 1720 | 2150 | NY9210 | 1950 | 9 | 210/315 | 98.19 | 1463 | 185 | 8700×2050×3500 | 320000 |
HX-2220GF | 2220 | 2775 | 16V240ZJC | 2500 | 16 | 240/275 | 199.04 | 1023 | 204 | 8300×3100×3500 | 450000 |
HX-2500GF | 2500 | 3125 | 12V280ZJ | 2650/2850 | 12 | 280/285 | 210.6 | 920 | 198 | 8150×2700×3910 | 450000 |
HX-2875GF | 2875 | 3593.75 | NY6320 | 3060 | 6 | 320/410 | 193.02 | / | 183 | 9755×2235×4510 | 750000 |
HX-3300GF | 3300 | 4125 | 16V280ZJA | 3680/3860 | 16 | 280/285 | 280.8 | 1200 | 198 | 9000×2700×3910 | 540000 |
HX-3356GF | 3356 | 4195 | NY7320 | 3570 | 7 | 320/410 | 225.19 | / | 183 | 10285×2235×4510 | 790000 |
HX-3860GF | 3860 | 4825 | NY8320 | 4080 | 8 | 320/410 | 257.36 | / | 183 | 11035×2235×4780 | 870000 |
HX-4380GF | 4380 | 5475 | NY9320 | 4590 | 9 | 320/410 | 289.53 | / | 183 | 11565×2235×4780 | 910000 |
