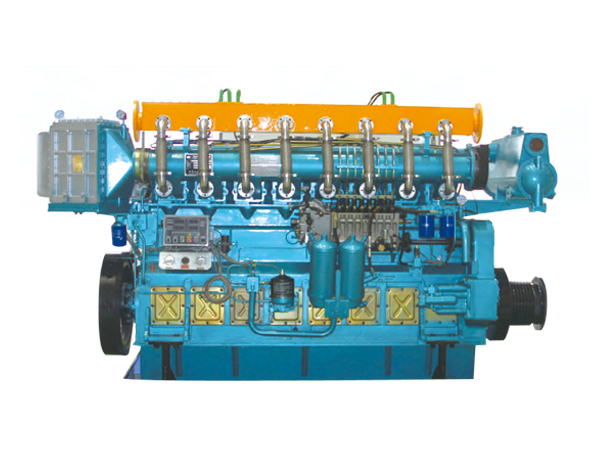

Zichai Z170 series dual-fuel engine is a new energy-saving engine designed and developed based on the Z170 series diesel engine, fully absorbing domestic and foreign advanced technology and design ideas, and maintaining its good power, economy, reliability and other advantages. .
Zichai Z170 series dual-fuel engines adopt electronically controlled multi-point injection technology. The engine can switch working status according to actual working conditions. It can work on LNG-diesel dual fuel or on diesel alone. It realizes the ratio of gas and diesel injection through the electronic control unit, so that the engine is always running, saving diesel without affecting the power output, thereby achieving energy saving and emission reduction effects. The comprehensive fuel replacement rate is 75%, and the fuel replacement rate is 85%. %. The common working conditions of ships are mostly low speed and high torque. The dual fuel mode can meet the low load gas filling demand. Under low load conditions, the 10% load point can enter the dual fuel mode, and the replacement rate can reach more than 40%.
Zichai Z170 series dual-fuel engines are mainly based on the marine main and auxiliary engines and land-based unit markets.
| serial number No | Projectltem | UnitUnit | Technical specifications Technical specifications | |||||
| 1 | ModelModel | / | Z6170ZLC/S Z6170ZLCZ/S | Z6170ZLC/S-1 Z6170ZLCZ/S-1 | Z6170ZLC/S-2 Z6170ZLCZ/S-2 | Z6170ZLC/S-3 Z6170ZLCZ/S-3 | Z6170ZLC/S-4 Z6170ZLCZ/S-4 | Z6170ZLC/S-5 Z6170ZLCZ/S-5 |
| 2 | Type Type | / | In-line, four-stroke, direct injection, turbocharged, intercooled, irreversible In-line, four straights, direct injection turbocharger, interoolig, irreversible | |||||
| 3 | Number of cylinders NO. of cylinders | / | 6 | |||||
| 4 | Cylinder diameter Cylinder bore | mm | 170 | |||||
| 5 | Piston stroke Piston stroke | mm | 200 | |||||
| 6 | Calibrated speed Rated speed | r/min | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
| 7 | Calibrated power Rated power | kW | 300 | 220 | 258 | 330 | 350 | 260 |
| 8 | average piston speed Mean piston speed | m/s | 6.67 | 6.67 | 6.67 | 8 | 8 | 8 |
| 9 | mean effective pressure Mean effective pressure | MPa | 1.322 | 0.969 | 1.137 | 1.212 | 1.285 | 0.955 |
| 10 | fuel consumption rate Fuel oil consumption | g/kW.h | 185(Diesel oil method) | |||||
| 11 | replacement rate Maximum substitution rate | % | 85 | |||||
| 12 | Compression ratio Compression ratio | / | 14.5:1 | |||||
| 13 | Rotation and fire order Rotation and fire order | / | Viewed from flywheel side: Turn left Counterclockwise, The firing order is Fire order1-5-3-6-2-4, turn right Clockwise, the firing order is Fire order1-4-2-6-3-5 | |||||
| 14 | Cooling methodCooling method | / | Closed water cooling | |||||
| 15 | Starting methodStarting method | / | Air, Electrical, air &electrical motor starting | |||||
| 16 | Lubrication method Lubricating method | / | Pressure lubricationPressure | |||||
| 17 | Overall dimensions Dimensions(LxWxH) | mm | Length x width x height: 2612x1475x1835 (for reference only, the specific model shall prevail Only reference) | |||||
| 18 | Net weightWeight | kg | 3200 | |||||
| Serial numberNo | project Item | UnitUnit | Technical specifications Technical specifications | |||||
| 1 | model Model | / | Z6170ZLC/S-6 Z6170ZLCZ/S-6 | Z6170ZLC/S-14 Z6170ZLCZ/S-14 | Z6170ZLC/S-18 Z6170ZLCZ/S-18 | Z6170ZLC/S-9 Z6170ZLCZ/S-9 | Z6170ZLC/S-7 Z6170ZLCZ/S-7 | Z6170ZLC/S-8 Z6170ZLCZ/S-8 |
| 2 | Type Type | / | In-line, four-stroke, direct injection, turbocharged, intercooled, irreversible in-line, four strokes, direct injection turbocharger, intercoolig, irreversible | |||||
| 3 | Number of cylinders NO. of cylinders | / | 6 | |||||
| 4 | Cylinder diameter Cylinder bore | mm | 170 | |||||
| 5 | Piston stroke Piston stroke | mm | 200 | |||||
| 6 | Calibrated speed Rated speed | r/min | 1200 | 1200 | 1200 | 1350 | 1500 | 1500 |
| 7 | Calibrated power Rated power | kW | 300 | 250 | 385 | 400 | 400 | 450 |
| 8 | average piston speed Mean piston speed | m/s | 8 | 8 | 8 | 9 | 10 | 10 |
| 9 | mean effective pressure Mean effective pressure | MPa | 1.101 | 0.918 | 1.414 | 1.306 | 1.175 | 1.322 |
| 10 | fuel consumption rate Fuel oil consumption | g/kW.h | 185(Diesel oil method) | |||||
| 11 | replacement rate Maximum substilution rate | % | 85 | |||||
| 12 | Compression ratio Compression ratio | / | 14.5:1 | |||||
| 13 | Rotation and fire order Rotation and fire order | / | Viewed from flywheel side: Turn left Counterclockwise, The firing order is Fire order1-5-3-6-2-4, turn right Clockwise, the firing order is Fire order1-4-2-6-3-5 | |||||
| 14 | Cooling method Cooling method | / | Closed water cooling | |||||
| 15 | Starting mode Starting method | / | Air, Electrical, air & electrical motor starting | |||||
| 16 | Lubrication method Lubricating method | / | Pressure lubricationPressure | |||||
| 17 | Overall dimensions Dimensions(LxWxH) | mm | Length x width x height: 2612x1475x1835 (for reference only, please refer to the actual model Onlyreference) | |||||
| 18 | Net weightWeight | kg | 3200 | |||||
| Serial numberNo | project Item | UnitUnit | Technical specificationsTechnical specifications | |||||
| 1 | model Model | / | Z8170ZLC/S-6 Z8170ZLCZ/S-6 | Z8170ZLC/S-18 Z8170ZLCZS-18 | Z8170ZLC/S-9 Z8170ZLCZ/S-9 | Z8170ZLC/S-20 Z8170ZLCZ/S-20 | Z8170ZLC/S-7 Z8170ZLCZ/S-7 | Z8170ZLC/S-8 Z8170ZLCZ/S-8 |
| 2 | Type Type | / | In-line, four-stroke, direct injection, turbocharged, intercooled, irreversible In-line, four strokes, direct injection turbocharger, intercoolig, irreversible | |||||
| 3 | Number of cylinders NO. of cylinders | / | 8 | |||||
| 4 | Cylinder diameter Cylinder bore | mm | 170 | |||||
| 5 | Piston stroke Piston stroke | mm | 200 | |||||
| 6 | Calibrated speed Rated speed | r/min | 1200 | 1200 | 1350 | 1350 | 1500 | 1500 |
| 7 | Calibrated power Rated power | kW | 400 | 528 | 540 | 575 | 540 | 600 |
| 8 | average piston speed Mean piston speed | m/s | 8 | 8 | 9 | 9 | 10 | 10 |
| 9 | mean effective pressure Mean effective pressure | MPa | 1.102 | 1.454 | 1.322 | 1.407 | 1.19 | 1.322 |
| 10 | fuel consumption rate Fuel oil consumption | g/kW-h | 185(Diesel oil method) | |||||
| 11 | replacement rate Maximum substitution rate | % | 85 | |||||
| 12 | Compression ratio Compression ratio | / | 14.5:1 | |||||
| 13 | Rotation and fire order Rotation and fire order | / | Viewed from flywheel side: Turn left Counterclockwise, The firing order is Fire order1-5-7-3-8-4-2-6 turn right Clockwise, fire order1-6-2-4-8-3-7-5 | |||||
| 14 | Cooling method Cooling method | / | Closed water cooling | |||||
| 15 | Starting methodStarting method | / | Air, Electrical, air & electrical motor starting | |||||
| 16 | Lubrication method Lubricating method | / | Pressure lubricationPressure | |||||
| 17 | Overall dimensions Dimensions(LxWxH) | mm | Length x width x height: 3080x1440x2050 (for reference only, the specific model shall prevail Only reference) | |||||
| 18 | Net weightWeight | kg | 4300 | |||||
