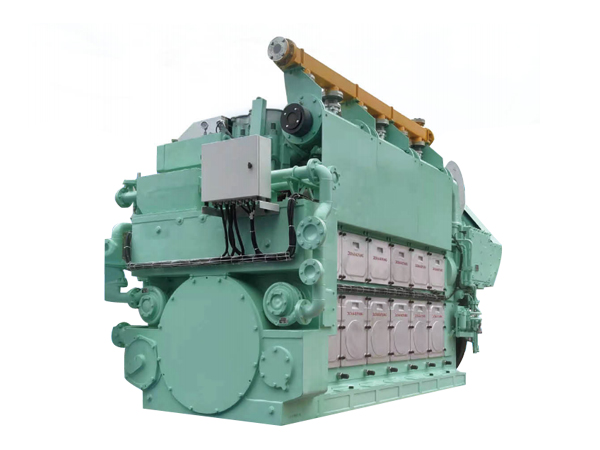

N28/S series dual fuel engine

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Zibo Chai N28/S series dual-fuel engines adopt dual oil and gas control technology to achieve control of diesel and natural gas injection time and injection volume, which can achieve fuel and natural gas consumption and improve the thermal efficiency of the dual-fuel engine.

2. The natural gas intake pipe adopts a double-wall pipe structure design to meet the requirements of the essential system of CCS specifications;

3. The natural gas replacement rate is 70%~85%, which can save operating costs and reduce the emission of harmful substances such as nitrogen oxides, sulfides, and tiny particulate matter;

4. The dual fuel mode and pure diesel mode can be switched in real time during operation, making it more flexible to use;

5. Meet the emission requirements of IMO TierII and GB15097/stage 2;

6. Advanced structure, stable performance and convenient maintenance.

7. The body and cylinder head are universal and the N28 diesel engine, maintaining the versatility and interchangeability of parts.

8. The gas pipe is designed on the top of the intake pipe to facilitate users to detect gas leakage and deal with problems.

9. The gas injection valve adopts a multi-point injection design, which can control the gas intake of each cylinder.

10. The gas injection valve, electronic control pump and control system all use the products of the 465th factory in China. It has reliable quality, stable performance, sufficient supporting facilities, timely supply, and convenient use for users.

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLC/S	6N280ZLC/S-1	6N280ZLC/S-2	6N280ZLC/S-3	6N280ZLC/S-4	6N280ZLC/S-5
3	Continuous power Rated power	kW/PS	1470/2000	1617/2200	1765/2400	1912/2600	2000/2720	2060/2800
4	Continuous speed Rated speed	r/min	750
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total displacement Total displacement	L	151.48
10	Minimum stable speed	r/min	300
11	Average piston speed Mean piston speed	m/s	10.25
12	Average effective pressure Mean effective pressure	MPa	1.55	1.71	1.86	2.02	2.11	2.18
13	Supercharge pressure() Supercharge pressure	MPa	0.25±0.02	0.26±0.02	0.27±0.02	0.28±0.02	0.30±0.02	0.30±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 18	≤ 18	≤18.5	≤ 18.5	≤ 19	≤ 19
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤ 560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182(75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Turn right Clockwise: 1-2-4-6-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.1
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the specific drawing shall prevail Only reference, please refer to the drawing)
27	The quality of the whole machine Weight	kg	About 32000
28	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLC/S-6	6N280ZLC/S-7	6N280ZLC/S-8	6N280ZLC/S-9	6N280ZLC/S-10
3	Continuous power Rated power	kW/PS	2207/3000	2354/3200	1765/2400	1912/2600	2000/2720
4	Continuous speed Rated speed	r/min	750		800
5	Cylinder straight Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total row Total displacement	L	151.48
10	Working stable speed Minimum stable speed	r/min	300		320
11	Average piston speed Mean piston speed	m/s	10.25		10.93
12	Average effective pressure Mean effective pressure	MPa	2.33	2.49	1.75	1.89	1.98
13	Supercharge pressure() Supercharged pressure	MPa	0.32±0.02	0.34±0.02	0.26±0.02	0.27±0.02	0.28±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 19.5	≤20	≤18	≤ 18	≤ 18.5
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR), 182 (75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃A	Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.1
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the specific drawing shall prevail Only reference, please refer to the drawing)
27	The quality of the whole machine	kg	About 32000
28	Average noise level Noise level	dB(A)	< 100 (Sound Pressure Level) Spl

Serial number No	name Name	Unit	Technical Regulations Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLC/S-11	6N280ZLC/S-12	6N280ZLC/S-13	6N280ZLC/S-14	6N280ZLC/S-15
3	Continuous power Rated power	kW/PS	2060/2800	2207/3000	2354/3200	2500/3400	2647/3600
4	Continuous speed Rated speed	r/min	800
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total displacement Total displacement	L	151.48
10	Working stable speed Minimum stable speed	r/min	320
11	Average piston speed Mean piston speed	m/s	10.93
12	Average effective pressure Mean effective pressure	MPa	2.04	2.19	2.33	2.48	2.62
13	Supercharge pressure() Supercharged pressure	MPa	0.28±0.02	0.30±0.02	0.32±0.02	0.33±0.02	0.34±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 18.5	≤ 19	≤ 19.5	≤20	≤21
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182 (75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃A	Electrical control Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 pressure relief valve rear pressure After the relief valve pressure: 1.1
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the specific drawing shall prevail Only reference, please refer to the drawing)
27	The quality of the whole machine	kg	About 32000
28	Average noise level Noise level	dB(A)	< 100 (Sound Pressure Level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLC/S-16	6N280ZLC/S-17	6N280ZLC/S-18	6N280ZLC/S-19	6N280ZLC/S-20	6N280ZLC/S-21
3	Continuous power Rated power	kW/PS	1500/2040	1750/2380	1800/2448	2150/2924	2200/2992	2450/3332
4	Continuous speed Rated speed	r/min	750				800
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total row Total displacement	L	151.48
10	Minimum stable speed	r/min	300				320
11	Average piston speed Mean piston speed	m/s	10.25				10.93
12	Average effective pressure Mean effective pressure	MPa	1.58	1.85	1.90	2.27	2.18	2.43
13	Supercharge pressure() Supercharged pressure	MPa	0.25±0.02	0.27±0.02	0.27±0.02	0.31±0.02	0.30±0.02	0.32±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 18	≤ 18.5	≤ 18.5	≤ 19	≤ 19	≤ 19.5
15	Exhaust temperature for each cylinder	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182 (75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.1
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
27	The quality of the whole machine Weight	kg	About 32000
28	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLC/S	8N280ZLC/S-1	8N280ZLC/S-2	8N280ZLC/S-3	8N280ZLC/S-4	8N280ZLC/S-5
3	Continuous power Rated power	kW/PS	2060/2800	2207/3000	2354/3200	2500/3400	2647/3600	2795/3800
4	Continuous speed Rated speed	r/min	750
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	cylinder Number No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Working stable speed Minimum stable speed	r/min	300
11	Average piston speed Mean piston speed	m/s	10.25
12	Average effective pressure Mean effective pressure	MPa	1.63	1.75	1.86	1.98	2.10	2.21
13	Supercharge pressure() Supercharged pressure	MPa	0.25±0.02	0.26±0.02	0.27±0.02	0.28±0.02	0.30±0.02	0.30±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 18	≤ 18	≤ 18	≤ 18.5	≤ 19	≤ 19
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤ 560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182 (75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃A	Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
27	The quality of the whole machine Weight	kg	About 38000
28	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLC/S-6	8N280ZLC/S-7	8N280ZLC/S-8	8N280ZLC/S-9	8N280ZLC/S-10
3	Continuous power Rated power	kW/PS	2942/4000	3090/4200	2207/3000	2354/3200	2500/3500
4	Continuous speed Rated speed	r/min	750		800
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Working stable speed Minimum stable speed	r/min	300		320
11	Average piston speed Mean piston speed	m/s	10.25		10.93
12	Average effective pressure Mean effective pressure	MPa	2.33	2.45	1.64	1.75	1.96
13	Supercharge pressure() Supercharged pressure	MPa	0.32±0.02	0.33±0.02	0.25±0.02	0.26±0.02	0.27±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 19.5	≤20	≤18	≤18	≤ 18
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR), 182(75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃A	Electrical control Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5992×2240×3822.5 (length×width×height) (reference size, the specific drawing shall prevail Only reference, please refer to the drawing)
27	The quality of the whole machine Weight	kg	About 38000
28	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLC/S-11	8N280ZLC/S-12	8N280ZLC/S-13	8N280ZLC/S-14	8N280ZLC/S-15
3	Continuous power Rated power	kW/PS	2720/3700	2942/4000	3090/4200	3310/4500	3530/4800
4	Continuous speed Rated speed	r/min	800
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Working stable speed Minimum stable speed	r/min	320
11	Average piston speed Mean piston speed	m/s	10.93
12	Average effective pressure Mean effective pressure	MPa	2.02	2.19	2.29	2.46	2.62
13	Supercharge pressure() Supercharged pressure	MPa	0.28±0.02	0.30±0.02	0.31±0.02	0.33±0.02	0.34±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 18.5	≤ 19	≤ 19.5	≤20	≤21
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤ 560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182(75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
22	Starting method Starting method	/	Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃ A	Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	Dimensions (L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the specific drawing shall be based on the drawing , please refer to the drawing)
27	The quality of the whole machine	kg	About 38000
28	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLC/S-16	8N280ZLC/S-17	8N280ZLC/S-18	8N280ZLC/S-19	8N280ZLC/S-20
3	Continuous power Rated power	kW/PS	2150/2924	2200/2992	2450/3332	2750/3740	2950/4012
4	Continuous speed Rated speed	r/min	750			800
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Working stable speed Minimum stable speed	r/min	300			320
11	Average piston speed Mean piston speed	m/s	10.25			10.93
12	Average effective pressure Mean effective pressure	MPa	1.70	1.74	1.95	2.04	2.19
13	Supercharge pressure() Supercharged pressure	MPa	0.25±0.02	0.26±0.02	0.27±0.02	0.28±0.02	0.30±0.02
14	Maximum explosion pressure	MPa	≤ 18	≤ 18	≤ 18.5	≤ 18.5	≤ 19.5
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR), 182(75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃A	Electrical control Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt)/3482 (with cylinder head bolt With cylinder head bolt )
26	Dimensions (L×W×H)	mm	5992×2240×3822.5 (length×width×height) (reference size, the specific drawing shall prevail Only reference, please refer to the drawing)
27	The quality of the whole machine Weight	kg	About 38000
28	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLC/S-21	8N280ZLC/S-22
3	Continuous power Rated power	kW/PS	3000/4080	3450/4692
4	Continuous speed Rated speed	r/min	800
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Working stable speed Minimum stable speed	r/min	320
11	Average piston speed Mean piston speed	m/s	10.93
12	Average effective pressure Mean effective pressure	MPa	2.23	2.56
13	Supercharge pressure() Supercharged pressure	MPa	0.31±0.02	0.33±0.02
14	Explosion pressure Maximum exploration pressure	MPa	≤ 19.5	≤21
15	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
16	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
17	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR), 182 (75%MCR)
18	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
19	Substitution rate Maximum substitution rate	%	90
20	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
21	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
22	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
23	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
24	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
25	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
26	External dimensions Dimensions(L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
27	The quality of the whole machine Weight	kg	About 38000
28	Average noise level Noise level	dB(A)	< 100 (Sound Pressure Level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLD/S	6N280ZLD/S-1	6N280ZLD/S-2	6N280ZLD/S-3	6N280ZLD/S-4
3	Continuous power Rated power	kW	1617	1720	1830	1912	2040
4	Continuous speed Rated speed	r/min	750
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total displacement Total displacement	L	151.48
10	Average piston speed Mean piston speed	m/s	10.25
11	Average effective pressure Mean effective pressure	MPa	1.71	1.82	1.93	2.02	2.15
12	Supercharge pressure() Supercharged pressure	MPa	0.26±0.02	0.27±0.02	0.27±0.02	0.28±0.02	0.30±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤18	≤ 18.5	≤ 18.5	≤ 18.5	≤19
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤ 560
16	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182(75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
23	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.1
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 32000
27	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLD/S-5	6N280ZLD/S-6	6N280ZLD/S-7	6N280ZLD/S-8	6N280ZLD/S-9
3	Continuous power Rated power	kW	2150	2260	2365	1617	1720
4	Continuous speed Rated speed	r/min	750			720
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total displacement Total displacement	L	151.48
10	Average piston speed Mean piston speed	m/s	10.25			9.84
11	Average effective pressure Mean effective pressure	MPa	2.27	2.39	2.50	1.78	1.89
12	Supercharge pressure() Supercharged pressure	MPa	0.31±0.02	0.32±0.02	0.33±0.02	0.27±0.02	0.27±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤ 19.5	≤ 19.5	≤ 20	≤ 18.5	≤18.5
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
16	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182(75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
23	Starting air pressure	MPa	Air bottle pressure: 3.0 pressure after pressure reducing valve After the relief valve pressure: 1.1
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 32000
27	Average noise level Noise level	dB(A)	< 100 (Sound Pressure Level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	6N280ZLD/S-10	6N280ZLD/S-11	6N280ZLD/S-12	6N280ZLD/S-13	6N280ZLD/S-14
3	Continuous power Rated power	kW	1830	1912	2040	2150	2260
4	Continuous speed Rated speed	r/min	720
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	6
9	Total displacement Total displacement	L	151.48
10	Average piston speed Mean piston speed	m/s	9.84
11	Average effective pressure Mean effective pressure	MPa	2.01	2.10	2.24	2.37	2.49
12	Supercharge pressure() Supercharged pressure	MPa	0.28±0.02	0.30±0.02	0.31±0.02	0.32±0.02	0.33±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤ 18.5	≤ 19	≤ 19.5	≤ 19.5	≤20
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbocharger	℃	≤560
16	Fuel oil consumption rate	g/kW. h	188( MCR) , 182(75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
23	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.1
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5102×2317×3660 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 32000
27	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLD/S	8N280ZLD/S-1	8N280ZLD/S-2	8N280ZLD/S-3	8N280ZLD/S-4	8N280ZLD/S-5
3	Continuous power Rated power	kW	2150	2260	2365	2470	2580	2700
4	Continuous speed Rated speed	r/min	750
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Average piston speed Mean piston speed	m/s	10.25
11	Average effective pressure Mean effective pressure	MPa	1.70	1.79	1.87	1.96	2.04	2.14
12	Supercharge pressure() Supercharged pressure	MPa	0.26±0.02	0.27±0.02	0.27±0.02	0.27±0.02	0.28±0.02	0.30±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤ 18	≤ 18.5	≤ 18.5	≤18.5	≤ 18.5	≤ 19
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
16	Fuel consumption rate Fuel oil consumption	g/kW. h	188 ( MCR) , 182 (75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
23	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 38000
27	Average noise level Noise level	dB(A)	< 100 (Sound Pressure Level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLD/S-6	8N280ZLD/S-7	8N280ZLD/S-8	8N280ZLD/S-9	8N280ZLD/S-10
3	Continuous power Rated power	kW	2800	2900	3000	3120	3220
4	Continuous speed Rated speed	r/min	750
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Average piston speed Mean piston speed	m/s	10.25
11	Average effective pressure Mean effective pressure	MPa	2.22	2.30	2.38	2.47	2.55
12	Supercharge pressure() Supercharged pressure	MPa	0.31±0.02	0.31±0.02	0.32±0.02	0.33±0.02	0.33±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤19.5	≤ 19.5	≤ 19.5	≤20	≤21
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤ 560
16	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR), 182 (75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃A	Electrical control Electric control
23	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the specific drawing shall be based on the drawing , please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 38000
27	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLD/S-11	8N280ZLD/S-12	8N280ZLD/S-13	8N280ZLD/S-14	8N280ZLD/S-15	8N280ZLD/S-16
3	Continuous power Rated power	kW	1912	2040	2150	2260	2365	2470
4	Continuous speed Rated speed	r/min	720
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Average piston speed Mean piston speed	m/s	9.84
11	Average effective pressure Mean effective pressure	MPa	1.58	1.68	1..77	1.86	1.95	2.04
12	Supercharge pressure() Supercharged pressure	MPa	0.24±0.02	0.26±0.02	0.27±0.02	0.27±0.02	0.27±0.02	0.28±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤17	≤ 18	≤ 18.5	≤18.5	≤ 18.5	≤ 18.5
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
16	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR) , 182(75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
23	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 38000
27	Average noise level Noise level	dB(A)	< 100 (Sound Pressure Level) Spl

Serial number No	name Name	Unit	Technical Specifications Technical specifications
1	Type Type	/	Inline, four strokes, direct injection, turbocharged, irreversible In-line, four strokes, direct injection, turbocharger, irreversible
2	model Model	/	8N280ZLD/S-17	8N280ZLD/S-18	8N280ZLD/S-19	8N280ZLD/S-20	8N280ZLD/S-21
3	Continuous power Rated power	kW	2580	2700	2800	2900	3000
4	Continuous speed Rated speed	r/min	720
5	Cylinder diameter Cylinder bore	mm	280
6	Piston stroke Piston stroke	mm	410
7	Compression ratio Compression ratio	/	15.08
8	Number of cylinders No. of cylinders	/	8
9	Total displacement Total displacement	L	201.97
10	Average piston speed Mean piston speed	m/s	9.84
11	Average effective pressure Mean effective pressure	MPa	2.13	2.23	2.31	2.39	2.48
12	Supercharge pressure() Supercharged pressure	MPa	0.30±0.02	0.31±0.02	0.32±0.02	0.32±0.02	0.32±0.02
13	Explosion pressure Maximum exploration pressure	MPa	≤ 19	≤ 19.5	≤ 19.5	≤ 19.5	≤20
14	Exhaust temperature of each cylinder Each cylinder exhaust temperature	℃	≤450
15	Turbine front row temperature Exhaust temperature before turbocharger	℃	≤560
16	Fuel consumption rate Fuel oil consumption	g/kW. h	188( MCR), 182(75%MCR)
17	Oil consumption rate Lubrication oil consumption	g/kW. h	0.8
18	Substitution rate Maximum substitution rate	%	90
19	Crank arrangement Crank arrangement	/	1.6 2.5 3.4
20	Fire order Fire order	/	Right turn right Clockwise: 1-2-4-6-8-7-5-3
21	Starting method Starting method	/	Compressed air motor starts Compressed air starting motor
22	Oil supply timing Fuel injection timing	℃ A	Electrical control Electric control
23	Starting air pressure Starting air pressure	MPa	Air bottle pressure: 3.0 After the relief valve pressure: 1.2
24	Cylinder height Height of lifting piston from crrankshaft	mm	3040 (without cylinder head bolt without cylinder head bolt)/3482 (with cylinder head bolt with cylinder head bolt)
25	Dimensions (L×W×H)	mm	5992×2240×3822.5 (Length×Width×Height) (Reference size, the drawing shall be the only reference, please refer to the drawing)
26	The quality of the whole machine Weight	kg	About 38000
27	Average noise level Noise level	dB(A)	< 100 (sonic pressure level) Spl

Get a free product quote

Our staff will contact you within 24 hours. If you need other services, please call the service hotline:18553382068

Gas generator set

Special generator set

Generator product series

N28/S series dual fuel engine

Quick navigation

Gas generator set

Special generator set

Contact us
